friction discs

Overrunning devices are designed to limit direction. Torque can be transmitted in only one direction (designated 'left' and 'right' hand rotation). Applications include implements that experience high centrifical loads such as spinning flywheels, fans, etc. Shutdown allows these masses to freely come to their own inerial stop.
The shear bolt device will 'break' at a given torque load determined by the bolt diameter and location. The broken bolt must then be replaced to continue operation.

Old Style



FF series friction clutches come in 4 varieties consisting of 2 or 4 discs using 2 different diameter discs and various size coil springs. They are adjustable and have been a proven torque limiter for many years.

FFV series Friction

New Style



Model
Overall Diameter
with overrunning
FFV22
155

FFV32
180

FFV34
180

FFV42
202

FFV44
202



FV series Friction
Model Overall Diameter with overrunning
FV22
155

FV32
180

FV34
180

FV42
202

FV44
202
Model Overall Diameter with overrunning
FT22
155
FT32
180
FT34
180
FT42
202
FT44
202

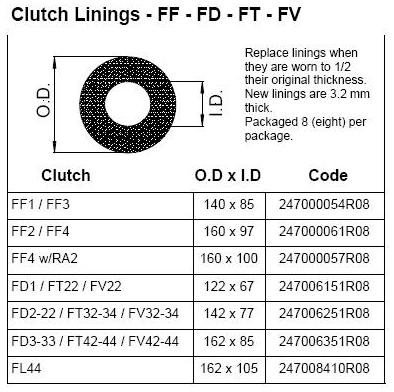

Identify Bondioli & Pavesi Friction Clutches



Friction Clutch Comparison

Model Diameter Discs Pressure Plate Spring Adjustable
FV22
155
2 (124x67)
2481A0001
Belleville 3.75mm
yes
FV32
180
2 (141x77)
248860007
Belleville 3.75mm
yes
FV34
180
4 (141x77)
248860007
Belleville 3.75mm
yes
FV42
202
2 (162x85)
248870007
Belleville 4.25mm
yes
FV44
202
4 (162x85)
248870007
Belleville 4.25mm
yes
FFV22
155
2 (124x67)
2481A0006
Coil 6mm
yes
FFV32
180
2 (141x77)
248220007
Coil 6mm
yes
FFV34
180
4 (141x77)
248220007
Coil 6mm
yes
FFV42
202
2 (162x85)
248230006
Coil
yes
FFV44
202
4 (162x85)
248230006
Coil
yes
FF1
180
2 (140x85)
248220007
Coil
yes
FF2
202
2 (160x97)
248230006
Coil
yes
FF3
180
4 (140x85)
248220007
Coil
yes
FF4
202
4 (160x97)
248230006
Coil
yes
FT22
155
2 (124x67)
2481A0002
Belleville
no
FT32
180
2 (141x77)
248860005
Belleville
no
FT34
180
4 (141x77)
248860005
Belleville
no
FT42
202
2 (162x85)
248870005
Belleville
no
FT44
202
4 (162x85)
248870005
Belleville
no



return to menu

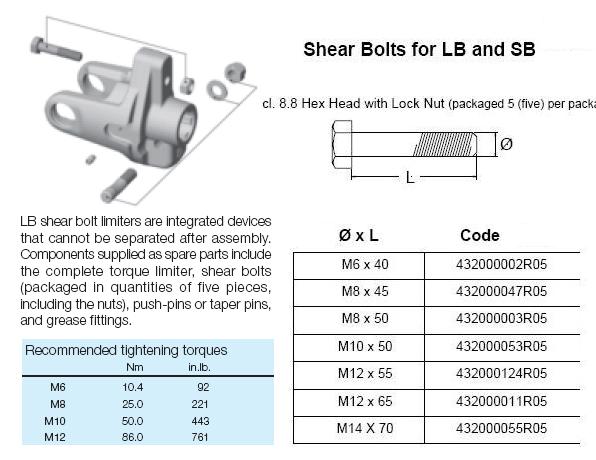

BYP Shear Bolt Yokes

BYP Shear Bolt Yokes

Part Number Series Diameter Splines Radius Torque Length
 6060G0306R  SIZE 5  1.375  6    2000nm
 6060G3706R  SIZE 5  1.375"  21    2000nm
 6060G3804R  SIZE 5  1.750  20    2500nm
 6060H0302R  SIZE 6  1.375"  6    2700nm
 6060H3702R  SIZE 6  1.375"  21    2700nm
 6060H3802R  SIZE 6  1.750  20    2700nm
 6060L0302R  SIZE 7  1.375  6    3100nm
 6060L0303R  SIZE 7  1.375  6    2900nm
 6060L0305R  SIZE 7  1.375  6    3100nm
 6060L3704R  SIZE 7  1.375  21    3100nm
 6060L3702R  SIZE 7  1.375"  21    3100nm
 6060L3801R  SIZE 7  1.750"  20    3800nm
 6060L3802R  SIZE 7  1.750"  20    3100nm
 6060L3808R  SIZE 7  1.750"  20    3200nm
 6060M0307R  SIZE 8  1.375  6    3500nm
 6060M0302R  SIZE 8  1.375"  6    3800nm
 6060M3702R  SIZE 8  1.375"  21    3800nm
 6060M3902R  SIZE 8  1.750  27
 6060M0403R  SIZE 8  1.750"  6    3800nm
 6060M3802R  SIZE 8  1.750"  20    3800nm



return to menu

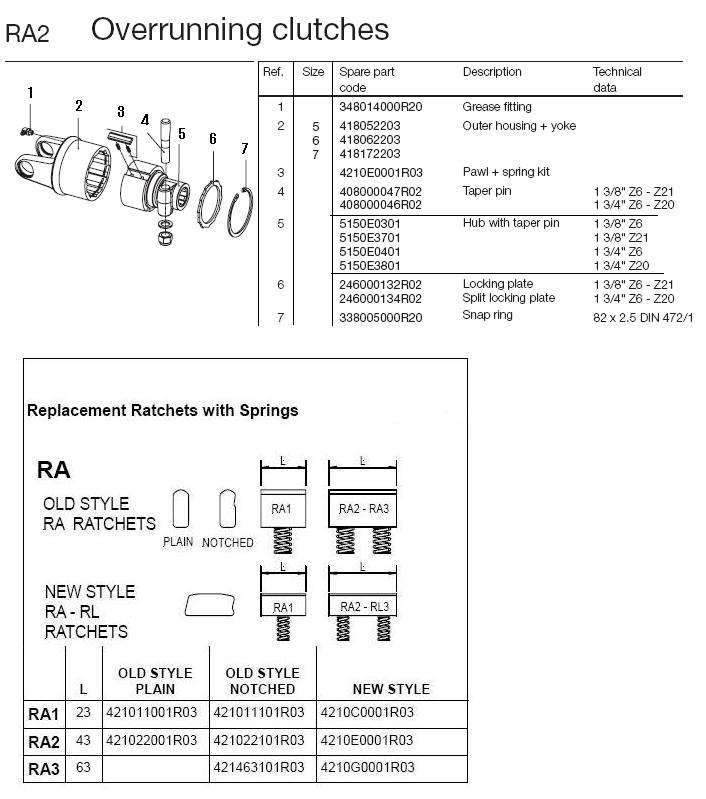

BYP Overrunning Devices

Part Number Series Diameter Splines Length (cuj-end) Connection Style
 601104701R  SIZE 4  1.375"  6      RA1
 601206601R  SIZE 6  1.375  6    clamp  RA2
 601206602R  SIZE 6  1.375  21      RA2
 601106014  SIZE 6  1.375"  21    QD pin  RA1
 601206604R  SIZE 6  1.750"  20    tapered pin  RA2
 601217601R  SIZE 7  1.375  6  7.250"  tapered pin  RA2
 601217602R  SIZE 7  1.375  21    Tapered Pin
 601217604R  SIZE 7  1.750  20
 601208201R  SIZE 8  1.375  6    Tapered Pin  RA2
 601308201R  SIZE 8  1.375"  6    tapered pin  RA3
 601308202R  SIZE 8  1.375"  21    tapered pin  RA3
 601208604R  SIZE 8  1.750"  20    tapered pin  RA2



return to menu
return to menu
Catalogs by DLS of Fresno 800-824-0706
