BYP Friction Clutches (if you can see it, chances are, we have it!)

Print

FF2

FF3

FF4

FT42

Clutch Index

    Catalog Page by Drive Line Service * Fresno, CA 800-824-0706

FF2 Friction Clutch (2 disc adjustable )









Drawing#
3	Flange Yoke	Part Number SIZE 5 253052101 SIZE 6 253062302 SIZE 7 253172302 SIZE 8 253082302
4	Bushing	# 258005320R02
6	Hub	Spline Size Part Number Tapered Pin (7) 1.375-6 515210311 408000075R 1.375-21 515213711 408000075R 1.75-6 515210411 408000076R 1.75-20 515213811 408000076R 1.375X.312 ROUND 274218701 - 1.50X.375  ROUND 274216710 -
5	Qty-2 * Friction Discs (160 x 97)	# 247000061R08
8	Inner Plate	# 248230002R02
9	Pressure Plate	# 248230006R02
1	Qty-8 * Bolt & Nut	# 432000006R08 (10x85mm)
2	Qty-8 * Springs	Coil Diameter Part Number 5mm 351016370R08 6mm 351022370R08 7mm 351013370R08

FF3 Friction Clutch (4 disc adjustable )



Drawing #
3	Flange Yoke	Part Number SIZE 5 253052001 SIZE 6 253062203 SIZE 7 253172201 SIZE 8 253082201
4	Bushing	# 258005320R02
8	Hub	Spline Size Part Number Tapered Pin #9 1.375-6 515220311 408000075R 1.375-21 515223711 408000075R 1.75-6 515220411 408000076R 1.75-20 515223811 408000076R
5	Qty-4 * Friction Discs (140 x 85)	# 247000054R08
7	Inner Plate	# 248220008R02
6	Drive Plate	# 248220001R02
10	Pressure Plate	# 248220007R02
1	Qty-8 * Bolt & Nut	# 432000007R08 (10 x 100mm)
2	Qty-8 * Springs	Coil Diameter Part Number 5mm 351016370R08 6mm 351022370R08 7mm 351013370R08

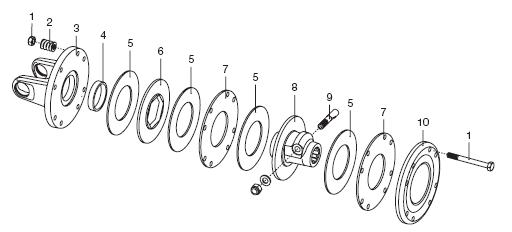

FF4 Friction Clutch (4 disc adjustable )



Drawing #
3	Flange Yoke	Part Number SIZE 5 253052101 SIZE 6 253062302 SIZE 7 253172302 SIZE 8 253082302
4	Bushing	# 258005320R02
8	Hub	Spline Size Part Number Tapered Pin # 1.375-6 515230311 408000075R 1.375-21 515233711 408000075R 1.75-6 515230411 408000076R 1.75-20 515233811 408000076R
5	Qty-4 * Friction Discs (160 x 97)	# 247000061R08
7	Qty-2 * Inner Plate	# 248230002R02
6	Drive Plate	# 275230004
10	Pressure Plate	# 248230006R02
1	Qty-8 * Bolt & Nut	# 432000007R08 (10 x 100mm)
2	Qty-8 * Springs	Coil Diameter Part Number 5mm 351016370R08 6mm 351022370R08 7mm 351013370R08

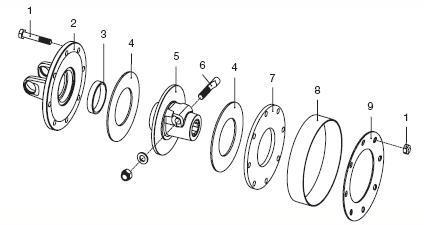

FT42 Friction Clutch (2 disc non-adjustable )



Drawing #
2	Flange Yoke (1)	Part Number SIZE 5 253058701 SIZE 6 253069001 SIZE 7 253078702 SIZE 8 253089001
3	Bushing	# 258005320R02
5	Hub (1)	Spline Size Part Number Tapered Pin # 1.375-6 515870305 408000075R 1.375-21 515873705 408000075R 1.75-6 515870405 408000076R 1.75-20 515873805 408000076R
4	Qty-2 * Friction Discs (162 x 85)	# 247006351R08
7	Inner Plate	# 248870005
1	Qty-8 * Bolt & Nut	# 432000054R08
9	Belleville Spring	Belleville Spring # Torque Thickness 367001190 367003870 1450nm 3.50mm 367006870 2100nm 4.50mm 367FT420A 1200nm 367FT420C 1450nm 367FT420D 1800nm
8	Spacer Band	# 240000214
