Size 4 & (S4) Bondioli and Pavesi PTO Driveline Parts

universal joint

Size 4 & (S4 SFT) Universal Joints

Cup (A) Length (B) HP@540 RPM HP@1000 RPM Torque
27
74.6
35
55

Nominal torque is a "working" torque figure. Factored into this is life expectancy, operating angle and greasing requirements.

Part Number

Cup Diameter

(A)

Length

(B)

Snap Ring

Nominal Torque

(ft lbs)

Series Type
  4120E0051R
22
86
outside
300
SFT CV

  41204R
27
74.6
outside
325
Size 4

  412040007
27
74.6
outside
325
S4 zerk in capx1

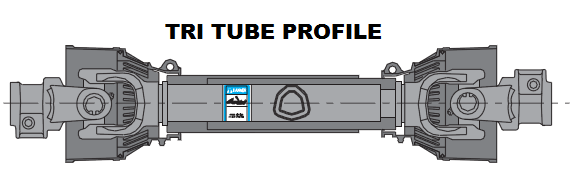

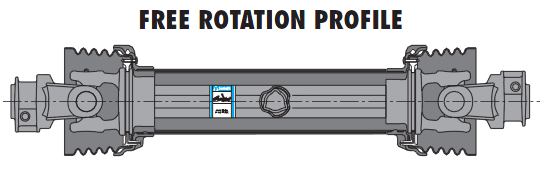

Size 4 Tri Tube Parts

Outer Tube Yoke Outer Tube B=43.5mm Inner Tube B=36mm Inner Tube Yoke

204046851
125081500
125071500
204046852

Outer Roll Pin # 341038000R10
8mm
Inner Roll Pin # 341048000R10


Shield Kit #

5F04121FFUS



Standard Size 4 Complete Assembly # BC7104074UCR07R07 << special price!

Standard Size 4 Complete Assembly # BC7104074UCR07R07 << special price!

Outer Tube Yoke Outer Tube B=48mm Inner Tube B=36mm Inner Tube Yoke

204S46856
123141500
125071500
204S46855



Please call for information

800-824-0706

Size 4 SFT 4-Lobe Parts ( S4 / E )

Outer Tube Toke Outer Tube D=50.2mm Inner Tube D=44.2mm Inner Tube Yoke

204S46854
122421500
122411500
204S46853


Shield Kit #

5CS4121U2SS

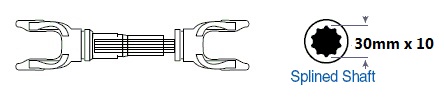

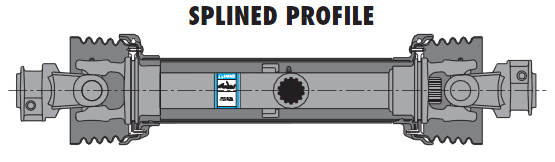

Size 4 Splined Assembly



Outer Half Shaft
Splined Shafting 30mm X 10
Splined Bar Yoke
569B40320
24917 ....
204043251



Popular Application - Hesston Baler

Size 4 Quick Disconnect Yokes
Part Number Diameter Splines Length (cuj-end) Collar or Pin Kit
 510047752  1.125  HEX
 5720E3755  1.375  21
 5720E0355  1.375  6
 5720E0376  1.375  6
 507040357  1.375  6    pin style
 4B41006  1.375  6



Size 4 Taper Pin Clamp Yokes
Part Number Diameter Number of Splines Bore Length cuj-end
 509040352  1.375  6        splined
 509043754  1.375  21        splined
 5090E0360  1.375  6    4.30    splined
 5090E3760  1.375  21    4.30    splined



Size 4 Cutter Yoke

Round Bore
Pinhole
Part Number
1.375
.500
211044955
35mm
.500
211044951

Size 4 Round Bore Yokes
Part Number Bore Key (cuj-e) Length Bore Length Notes
 212046762  1.00"  .250"
 212046764  1.250  .250
 212048651  1.250  .312
 212048751  1.375  .312  3.625
 212046766  1.375  .375
 212046765  1.50  .375
 212046151  25mm  8mm
 212046351  35mm  10mm



Size 4 Flanges



Part Number Pilot Bolt Circle Length Angle Holes Notes
 221047258  57  84  65    6 on 8@10mm  Hesston
 253042001  64  153  73    8-4pair@10mm  FF1 /FF3
 253048602  64  153      8-even@10mm  FT32*FV32
 2530E1C05  64  153  73    8-4pair@10mm  FFV32



Size 4 EL CV Parts

QD yokes
Tractor Part#
1.375-6
5730E0384
1.375-21
5730E3784
1.750-6
5730E0484
1.750-20
5730E3884
CV Body Outer CV Yoke Outer 4-lobeTube Inner 4-lobe Tube Inner CV Yoke

D1=50.2

D1=44.7
5110E0052
2150E6871
122431500
2453G1500
2150E6872
  Outer CV Yoke Outer Tri-Tube Inner Tri-Tube

outer cv tri-tube yoke
=43.5mm
=36.6mm

2150E6883
125161500
245101500

Size 4 & S4 Constant Velocity Shields

4-Lobe

EL CV Cone

EL CV Cone

Bearing

Outer Shield

Bearing

Inner Shield

Bearing

SFT EL CV Shield Kit
2190E0121
2550E0005R02
2550C0001R02
2550C0002R02
5CS4121U2WS









Tri Tube

EL CV Cone

EL CV Cone

Bearing

Outer Shield

Bearing

Inner Shield

Bearing

Tri-Tube EL CV Shield Kit
2190E0127
2550E0005R02
255040005R02
255040006R02
5F04121W1US









Size 4 Clutches & Overrunning Devices

Overrunning Device

Part Number Model Diameter Splines Length (cuj-end) Connection
 601104702R  RA1  1.375  21    push pin
 601104701R  RA1  1.375  6    push pin

Shear Bolt

Part

Number

Model Diameter Splines

C-to-bolt

radius

Bolt

Diameter

Length

(cuj-end)

Torque

Rating

 6060E3702R  LB  1.375  21  55  M8x45  115  1700nm
 6060E0302R  LB  1.375  6  55  M8x45  115  1700nm

FT series

Friction Clutches

Part Number Diameter Splines Torque Connection Model
 6QE344901R  1.375  6  1000nm    FT32
 635E41203R  1.375  6  1200  tapered pin  FV32
 637141001R  1.375"  6  1000nm    FF1

We inventory clutches by components in order to build a variety of combinations. See breakdown sheets.

FF / FFV series





Catalogs by DLS of Fresno 800-824-0706
