Size 6 & (S7) Bondioli and Pavesi PTO Driveline Parts

universal joint

Size 6 & (S7 SFT) Universal Joints

Cup (A) Length (B) HP@540 RPM HP@1000 RPM Torque
30.2
92
64
100

Nominal torque is a "working" torque figure. Factored into this is life expectancy, operating angle and greasing requirements.

Part Number

Cup Diameter

(A)

Length

(B)

Snap Ring

Nominal Torque

(ft lbs)

Series Type
  4120G0051R
27
100
outside
550
S6 EL CV

  41206R
30.2
92
outside
583
SIZE 6

  4120H0012
30.2
91.5
outside
583
S7 SFT

  412060004
30.2
99.4
outside
675
old 70 degree CV

  412060012
30.2
99.4
outside
675
80 degree 100 series

  412060023
30.2
99.4
outside
675
42 degree CV


Size 6 Tri Tube Parts ( H )



Outer Tube Yoke Outer Tube B=54mm Inner Tube B=45mm Inner Tube Yoke

204066851
125121500
125091500
204066852

Outer Roll Pin # 341042000R10
10mm
Inner Roll Pin # 341043000R10


Shield Kit #

5F06121FFUS

Shield components

Outer Cone Outer Shield Bearing Outer Tube Inner Tube Inner Shield Bearing Inner Cone
517050030
255060005R02
236832000
236821650
255060006R02
517050020



SFT S7 4-Lobe Parts ( H )

Outer Tube Yoke # Outer Tube D1=53.9mm Inner Tube D1=46.9mm Inner Tube Yoke #
204S76855
122661500
122651500
204S76856


Shield Kit #

5CS7121U2SS

Size 6 Splined Assembly



Outer Half Shaft
Splined Shafting
Splined Bar Yoke
569B61010
24911 ....
204063361



Midship Type

Midship type shafts must be designed and quoted per your specifications <spec sheet>

Size 6 (S7) Quick Disconnect Yokes
Part Number Diameter Splines Length (cuj-end) Collar or Pin Kit
 4B61019  1.125  HEX
 5720H3755  1.375  21
 4B61021  1.375  21
 5720H0355  1.375  6
 4B61006  1.375  6
 5720H3855  1.750  20
 4B61020  1.750  20
 5720H0455  1.750  6

 Ball Collar Kits

Size 6 (S7) Taper Pin Clamp Yokes
Part Number Diameter Number of Splines Bore Length cuj-end
 5090H0360  1.375  6        splined
 5090H3760  1.375  21        splined
 5090H0460  1.750  6        splined
 5090H3860  1.750  20        splined

Size 6 ( S7 ) Round Bore Yokes
Part Number Bore Key (cuj-e) Length Bore Length Notes
 211069151  1.250"  none      pin hole
 212066755  1.375"  .375"
 211066762  1.500  .375  4.625    pin hole
 212066766  1.500  .375  4.250"
 212068851  1.750"  .375"  4.625"
 211064851  30mm  none      pin hole
 212066351  35mm  10mm

Size 6 ( S7 ) Straight Splined Bores

 Spline Size
 Part Number
1.375-6
203060351
1.375-21
203063751
1.750-6
203060451
1.750-20
203063851

Size 6 Series H Yoke

Part Number Length Angle
 A622800  4.312

Size 6 Flanges



Part Number Pilot Bolt Circle Length Angle Holes Notes
 253062203  64  153  82    8-4pair@10mm  FF1 * FF3
 2530H1C05  64  153  82    8-4pair@10mm  FFV34
 253068903  64  153  82    8-even@10mm  FT32 * FT34
 253069001  64  163.5  82    8-even@10mm  FT42 * FT44
 253062302  64  173  82    8-4pair@10mm  FF2 * FF4
 2530H1E05  64  173  82    8-4pair@10mm  FFV42 * FFV44



 EL CV assembly detail drawing
 Part# 71R6121UCWR7R07
QD yokes
Tractor Part#
1.375-6
5730G0384
1.375-21
5730G3784
1.750-6
5730G0484
1.750-20
5730G3884

Ball Collar Kits

Size 6 EL CV Parts

CV Body Outer CV Yoke Outer 4-lobeTube Inner 4-lobe Tube Inner Yoke Inner CV Yoke

D1=53.9

D1=47.4
5110G0061
2150G6871
122461500
2453N1500
204S76856
2150G6872
  Outer CV Yoke Outer Tri-Tube Inner Tri-Tube

outer cv tri-tube yoke
=54mm
=45mm

2150G6885
125171500
245161500


* Single UJ in rear of CV assembly is Size 5 for 4-lobe assemblies.

* Single UJ in rear of CV assembly is Size 6 for tri-tube assemblies.



CV Head w/ 1.375-6 spline PN# 71G6W49WR7

Size 6 & S6 Constant Velocity Shields

4-Lobe

EL CV Cone

EL CV Cone

Bearing

Outer Shield

Bearing

Inner Shield

Bearing

SFT EL CV Shield Kit
2190G0141
2550G0024R02
2550G0001R02
2550G0002R02
5CS6121U2WS









Tri Tube

EL CV Cone

EL CV Cone

Bearing

Outer Shield

Bearing

Inner Shield

Bearing

Tri-Tube EL CV Shield Kit
2190G0150
2550G0024R02
255060005R02
255060006R02
5F06121W1UC









S6 (size 6) DOUBLE CV ASSEMBLY - 80 degree X 50 degree

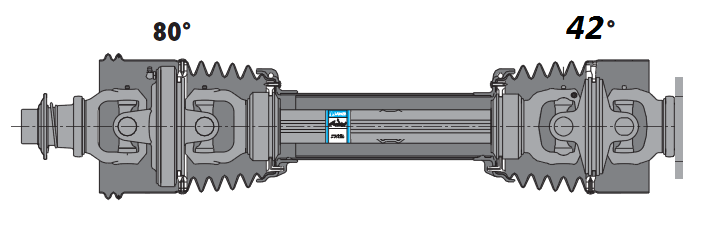

S6 (size 6) DOUBLE CV ASSEMBLY - 80 degree X 42 degree

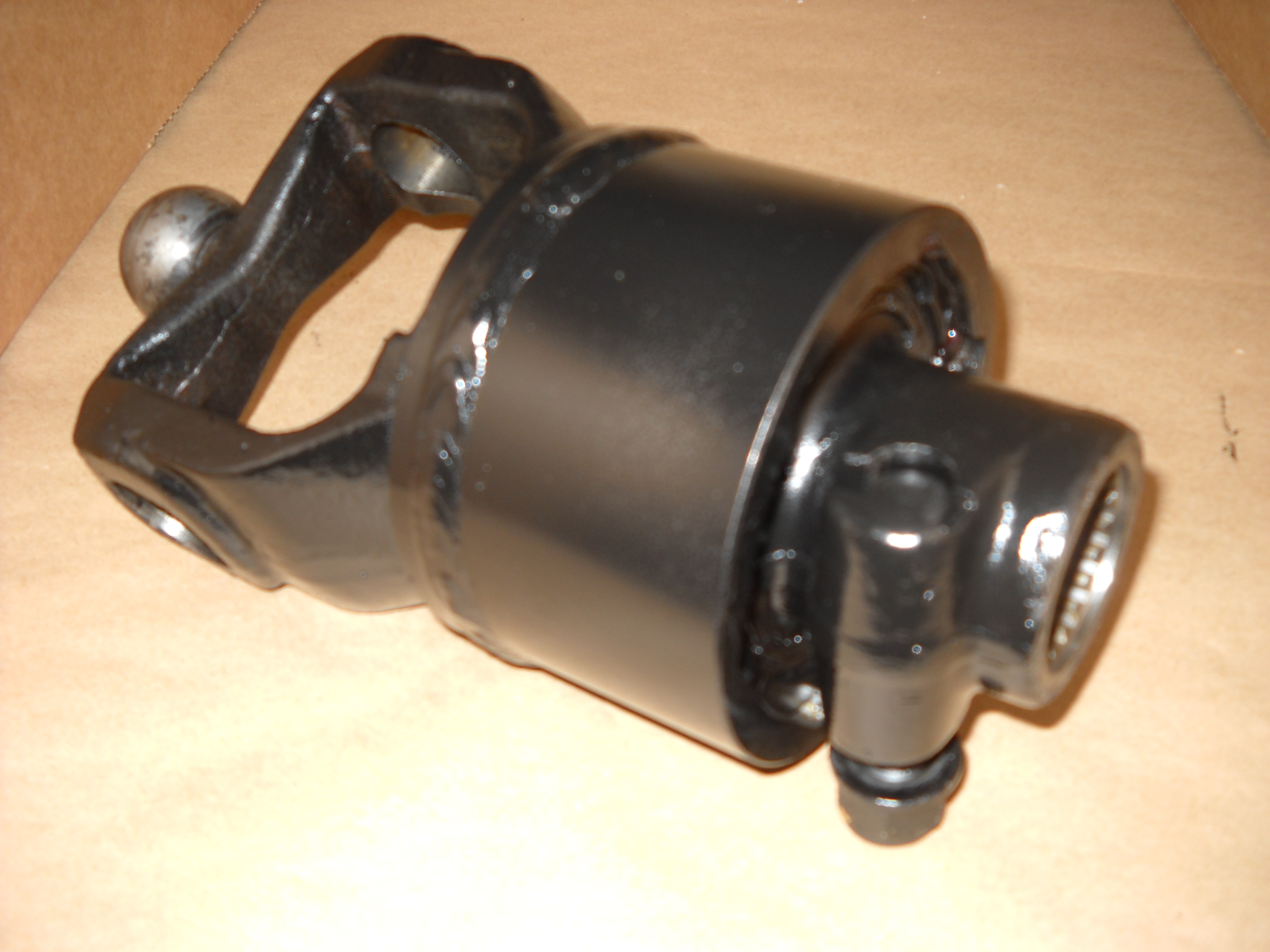

Not our 42 degree flange. This piece was made in our machine shop to incorporate an overrunning device into an 80 degree CV head.

 By utilizing our 42 degree CV flange for the rear of this PTO, we can machine almost any implement connection to fit.



 This means round bores, standard splines or even clutches.



 We believe this is the real answer to applications requiring a double CV. Double CV PTOs using 2) 80 degree CVs have historically proven to fail prematurely.

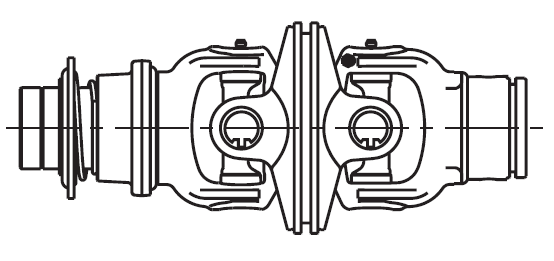

CAT4 50 DEGREE * 27x100 Part Number
Inner tube yoke 45mm 2080G6887
Boot 246000116
H yoke 2080G0064
1.375-6 TP 5190G0352
1.375-21 TP 5190G3752
universal joint 4120G0051R

CAT5 50 DEGREE * 30.2x99.4 Part Number
Inner tube yoke 45mm 208066864
Boot 246000116
H yoke 208060061
1.375-6 TP 519060376
1.375-21 TP 519063777
universal joint 412060023


Size 6 Clutches & Overrunning Devices



Overrunning Device

Part Number Model Diameter Splines Length (cuj-end) Connection
 601206602R  RA2  1.375  21
 601206601R  RA2  1.375  6    clamp
 601106014  RA1  1.375"  21    QD pin
 601206604R  RA2  1.750  20    tapered pin

Shear Bolt

Part

Number

Model Diameter Splines

C-to-bolt

radius

Bolt

Diameter

Length

(cuj-end)

Torque

Rating

 6060H3702R    1.375  21  55  M10x50  134  2700nm
 6060H0302R    1.375  6  55  M10x50  134  2700nm
 6060H3802R    1.750  20  55  M10x50  134  2700nm
 6060H0402R  LB  1.750  6  55  M10x50  134  2700nm

FT Series Friction Clutches

Part Number Diameter Splines Torque Connection Model
 663H53403R  1.375"  6  1450nm    FT42
 639248001R  1.375"  6  1200nm    FF2

We inventory clutches by components in order to build a variety of combinations. See breakdown sheets.
