1610 Series Driveline Parts
1550    SPL90   1710         Print

1610 Universal Joints * (A) 1.875 x (B) 5.312



universal joint
 Part No  Vendor  Detail
 4-0279  Neapco
 5-279X  Dana
 4-0674  Neapco  Half Round


1610 Tube Yokes

Part Number Tube Size (H) Length Angle
 N5-28-627  3.50x.134  3.00  35
 5-28-327  4.00x.134  3.00  35



1610 Flange Yokes

Part Number Pilot Bolt Circle Length Angle Holes Notes
 5-2-599-1  5.312 M  6.125  2.750    8 D @.375
 5-2-379  6.625 M  6.125  1.875  8  8 D@.375
 5-2-279  6.625 M  6.125  2.750  22  8 D @.375
 5-2-629  7.750 M  7.250  2.750  22  8 D @.375

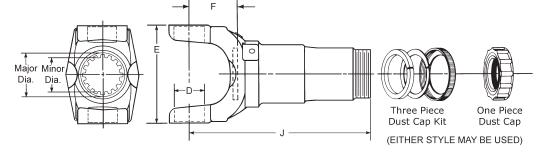

1610 Slip Yokes

  stub shafts

Part Number Diameter Splines (J) Length (F) Length Angle Dust Cap
 N5-3-2261KX  2.00  16  10.812  3.188  35  5-86-68
 5-3-108KX  2.00  16  7.812  1.44  22  5-86-68
 5-3-288KX  2.00  16  9.312  3.188  30  5-86-68
 5-3-168KX  2.672  18  3.50  1.25  8  D5C
 5-3-198KX  2.672  18  4.250  1.250  8  D5C


1610 End Yokes



Part Number Diameter Splines (S) Length (Q) Bore (R) Seal ... Notes / Model



Midship End Yokes

Part Number Diameter Splines (Q) Bore (S) Length Mates with Mates with
 5-4-1721  1.750  10      5-53-141
 5-4-7171-1  1.750  34      5-53-261


1610 Yokeshafts

Part Number Diameter Splines (K) Length (L) Length of Spline (R) Length of Shaft Angle Notes
 5-82-781  2.00  16  10.812  3.50  7.562  22
 5-82-791-2  2.00  16  9.531  3.00  5.969  35
 5-82-921  2.00  16  7.875  2.75  6.438
 5-82-951-1  2.672  18  7.14  1.50  4.84
 5-82-161  2.6720  18  4.125  1.50  2.50  12
 5-82-191  2.6720  18  4.219  1.594  2.531  42
Yokeshaft Calculations


Inboard Midship Assemblies



Diameter Splines Tubing Stub Center Bearing Fixed Yoke
 1.750  34  3.50x.134  5-53-261  210084-2X  5-4-7171-1
 1.750  10  3.50x.134  5-53-141  210084-2X  5-4-1721-1
 1.750  34  4.00x.134  5-53-271  210084-2X  5-4-7171-1
 1.750  10  4.00x.134  5-53-191  210084-2X  5-4-1721-1
