L14 / 2000 Series Driveline Parts  L12     Size 4    2300

L14 / 2000 Series Universal Joints


(A) 1.125 " x (B) 2.625 "



 Part No  Vendor  Detail
 1-2075  Neapco
 1-2076  Neapco  zerk in cap
return to menu

L14 / 2000 Series Rectangular Parts

2
3
4
5
6

Tube Yoke #

2.00" x .083

Tube

Rectangular Sleeve 1.00" x 1.125"

Solid Shaft

.750x.875"

Bar Yoke #

701-1400

20-9131
70-2000
53-2034
73-1001

300-1400

20-9129
Shield #69-1248
Shield Bearing #56-2000




  Half Shafts

Yoke # 701-1400

Yoke # 300-1400

Yoke & Tube Length cuj-end Yoke & Bar Length cuj-end
64-2728
24"
65-2828
24"
64-2740
36"
65-2840
36"
64-2752
48"



return to menu

L14 / 2000 Series Quick Disconnect Yokes
Part Number Diameter Splines Length (cuj-end) Collar or Pin Kit
 102-1418  1.125  Hex
 100-1421  1.375  21
 100-1406  1.375  6





return to menu

L14 / 2000 Series Clamp Yokes



Splined

Part Number Diameter Number of Splines Bore Length cuj-end
 14031-1103  1.00  15        splined

Round

Part Number Diameter Key Bore Length Length cuj-end
 14021-2088  1.000  .250"        round
 14021-1111  1.188"  .188"        round
 14021-1387  1.250"  .312"        round





return to menu

L14 / 2000 Series Straight Bores



Round

Part Number Bore Key (cuj-e) Length Bore Length Notes
 800-1416  1.00  .250  3.875
 800-1417  1.062  .250  3.875
 806-1418  1.125  .250 / .312  3.875
 806-1419  1.188  .250 / .312  3.875
 806-1420  1.250  .250 / .312  3.875
 800-1422  1.375  .312  3.875
 800-1424  1.500  .375  3.875

Splined

Part Number Diameter Splines (S) Length (Q) Bore (R) Seal ... Notes / Model
 801-1418  1.125  6
 801-1420  1.250  6
 801-1406  1.375  6
 801-1421  1.375  21
Square
Part Number Bore (D) Length Bore Length Notes
 804-1414  .875
 804-1416  1.00
 804-1418  1.125
 804-1420  1.250
 804-1419  1.88
Hex
Part Number Bore (D) Length Bore Length Notes
 805-1418  1.125"
 805-1420  1.250"





return to menu

L14 / 2000 Series Sleeve Yokes

Square

Part Number (C) Bore Bore Type (D) Length

Splined

Part Number Diameter Splines (J) Length (F) Length Angle Dust Cap
return to menu

L14 / 2000 Series H Yoke

Part Number Length Angle
 14061-1588  1.875
return to menu



return to menu

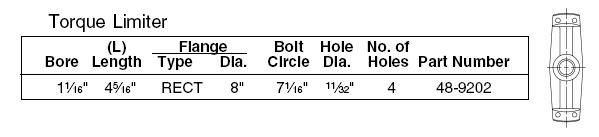

L14 / 2000 Series Torque Limiter

return to menu

L14 / 2000 Series Shear Bolt Yokes

Part Number Model Diameter Splines Center-to-bolt Length (cuj-end) Torque Rating
 104-1421    1.375  21
 104-1406    1.375  6
return to menu
