2200 / 35N Series Driveline Parts  Size 6     2400    55N

2200 / 35N Series Universal Joints






universal joint



(A) 1.250" x (B) 3.219"



59 Hp @ 540 RPM

111 HP @ 1000 RPM



Weasler Torque Ratings

Part Number

Cup Diameter

(A)

Length

(B)

Snap Ring

Nominal Torque

(ft lbs)

Series Type
  2-2275
1.250
3.219
outside
35N / 2200

  2-2276
1.250
3.219
outside
35N / 2200
  zerk in cap
  200-3500
1.250
3.219
outside
35N / 2200

  200-3501
1.250
3.219
inside
35N / 2200


2200 / 35N Square Parts

2
3
4
5
6

Tube Yoke #

2.125" x .120

Tube

Square Sleeve 1.1875"

Solid Shaft

1.1875"

Bar Yoke #

22-1325
70-2125
53-2435
73-1188
22-1344
Shield #69-2248
Shield Bearing #56-2200




  Half Shafts

Yoke, Tube & Sleeve (2,3,4) Length cuj-end Yoke & Bar (5,6) Length cuj-end
64-2529
24.625"
65-2629
23.875"
64-2539
35.125"
65-2639
33.875"



2200 / 35N Splined Parts


2
3
4
5

Spline

Dimensions

Splined Bar Yoke #

Splined shaft

Spline Sleeve

Tube Yoke #

1.312"-20
301-3500
404-2120
502-3500
22-1325(2.125x.120)
1.812"-20
302-3500
404-2720
503-3500
704-3500(2.5x.134)
Shield #69-2248
Shield Bearing #56-2200

Heavy Duty #69-2648
Heavy Duty #56-0844




2200 / 35N Series Quick Disconnect Yokes
Part Number Diameter Splines Length (cuj-end) Collar or Pin Kit
 102-3518  1.125  HEX  4.750  pin
 101-3521  1.375  21  5.125  collar
 22-2312  1.375  6  4.750  pin
 101-3506  1.375  6  5.125  collar
 101-3520  1.750  20  6.125  collar





2200 / 35N Series Clamp Yokes



Splined

Part Number Diameter Number of Splines Bore Length cuj-end
 807-3521  1.375  21        splined
 807-3506  1.375  6        splined
 22-1140  1.375  6        splined
 22-1105  1.375  21        splined
 35191-2256  1.53  23  2.00  4.00    splined
 807-3520  1.750  20        splined
 807-3527  1.750  27        splined

Round

Part Number Diameter Key Bore Length Length cuj-end
 35351-1001  1.125  HEX    3.00    round
 35011-2029  1.375  .375        OBSOLETE
 35351-1010  1.375  .375  2  3.00    interfering
 211U9  1.50  0.375        interfering
 35191-1788  1.500  0.375        round





2200 / 35N Series Straight Bores



Round

Part Number Bore Key (cuj-e) Length Bore Length Notes
 800-3516  1.00  .250  4.250
 Y324  1.25    3.5  1.8    35N
 806-3520  1.250  .250 / .312  4.250
 806-3522  1.375  .312 / .375  4.250
 800-3523  1.4375  .375  4.250
 800-3524  1.500  .375  4.250
 800-3526  1.625  .375  4.250
 800-3528  1.750  .375  4.250

Splined

Part Number Diameter Splines (S) Length (Q) Bore (R) Seal ... Notes / Model
 Y311  1.375  6  3.00      .312  Rears
 801-3506  1.375  6  4.250
 801-3521  1.375  21  4.250
 Y322  1.375  21  3.375
 Y345  1.5  17  2.4375

Square

Part Number Bore (D) Length Bore Length Notes
 804-3516  1.00  4.125
 804-3518  1.125  4.125
 804-3519  1.1875  4.125
 Y312  1.1875  2.875
 Y314  1.1875  3.375
 804-3520  1.250  4.125
 804-3524  1.500  4.125





2200 / 35N Series H Yokes

Part Number Length Angle
 22-2200  2.125
 35051-1615  4.250
 22-2205  7.250



2200 / 35N Series Flange Yokes

Part Number Pilot Bolt Circle Length Angle Holes Notes
 Y361  2.69  3.750 SAE41 RECT  2.4375    4@0.460  REARS



50 degree CV parts

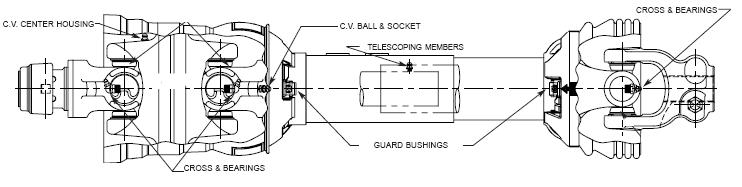

35N Constant Velocity

Cat-4 UJ PN# 200-3540



Please call for Catagory 4 CV shafts *** 800-824-0706





35N Constant Velocity

Cat-5 UJ PN# 200-3545

Cat-5

Spline

Dimensions

 Assembly #

CV Half Shaft

with Shield

CV Half Shaft

without Shield

CV Shield
1.375-6
912-3548
1.375-21
912-3548
1.750-20
912-3548
* Longer assembly is achieved by lengthening the non-CV half.

* uses shield bearing

#04-15155

Agmaster Replacements for Weasler CV shafts


1.375-6 107-3506
1.375-21 107-3521
1.750-20 107-3520





220 / 35N Friction Clutches

Part Number Diameter Splines Torque Connection Model
 4350301  1.375  6  1000nm  AS Collar  K90/2
 4350302  1.375  6  1350nm  AS Collar  K90/2



Agmaster Clutches





2200 / 35N Series Shear Bolt Yokes

Part

Number

Model Diameter Splines

C-to-bolt

radius

Bolt

Diameter

Length

(cuj-end)

Torque

Rating

 104-3521    1.375  21
 104-3506    1.375  6
 104-3520    1.750  20



2200 Series Clutches & Overrunning Devices --- Please call 800-824-0706

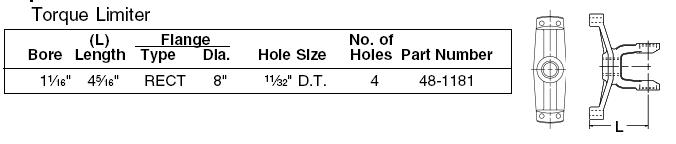

2200 / 35N Series Torque Limiter

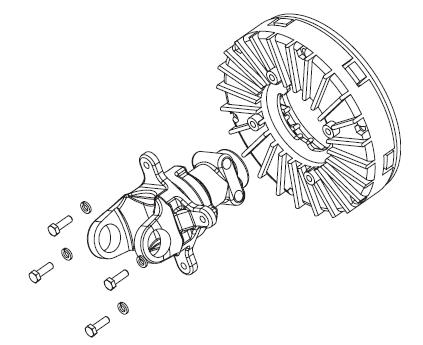

Weasler Modular Clutches

Modular Friction Clutches

"TorqueMaster"







Please call 800-824-0706

Internal Parts

Friction Discs Springs
Part #

Outside

Diameter
970-7000
6.20"
970-9000
7.95"
970-0153
6.02"
970-4140
5.12"
970-4160
6.3"
970-6000
5.25"




Part #

Outside

Diameter

 Thickness
987-9000
6.188"
.138"
98712000
6.188"
.158"
98715000
6.188"
.169"
98718000
6.188"
.189"
98910000
8.00"
.158"
98915000
7.81"
.169"
98918000
7.87"
.189"
98921000
7.75"
.89"
Separators


Standard

Part #

Outside

Diameter
990-7000
6.20"
990-9000
8.07"

Overrunning

Part #

991-7000
6.20"
991-9000
8.07"




Overrunning Clutch Repair Kit

Part #
980-7000:
 1)Overrunning Coller
  2)Dogs
  2)Leaf Springs
  1)Wave Spring
  1)Washer
  1)Retaining Ring
  1)Instructions











Proprietary Friction Clutch (limited availability of component parts)

Catalogs by DLS of Fresno 800-824-0706
