Walterscheid K90 Friction Clutches

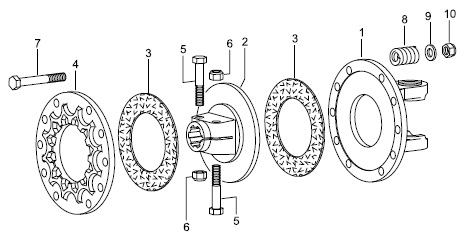

K90/2 Component Parts

1. K90 Flange
Part Number
2300
335443
2400
335604
2500
335605
2600
335606
2. K90/2 Hub
Spline Size
 1.375-6


338221
 1.375-21
338222
1.750-6
338224
1.750-20
 # 168556
4. Thrust Flange
  # 337464

5. Clamp Bolt M12x65 (2)

020467
6. Clamp Nut (2)
010490
7. Bolts (10) M12x1.25x90
304136

8. Compression Springs (10)

330592
9. Washers (10)
020093
10 Nuts(10)
123594

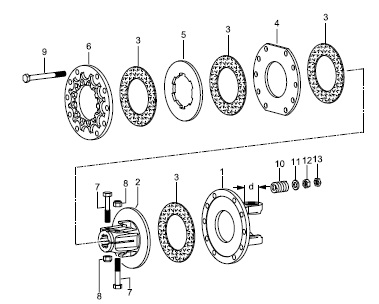

K90/4 Component Parts

1. K90 Flange
Part Number
2300
335443
2400
335604
2500
335605
2600
335606
2. K90/4 Hub
Spline Size
 1.375-6
320497
 1.375-21
338232
1.750-6
328444
1.750-20
338233
 # 168556
4. Drive Plate
# 335603
5. Thrust Plate # 335442
6. Thrust Flange
  # 337464

7. Clamp Bolt M12x65 (2)

020467
8. Clamp Nut (2)
010490
9. Bolts (10) M12x1.25x115
165949

10. Compression Springs (10)

330592
11. Washers (10)
020093
12 Nuts(10)
123593
13. Lock Nuts (10)
123594



Complete K90 Clutches

Series Model Bore Torque Part No
 2300  K90/2  1.375-6    333299
 2400  K90/4  1.375-21    342395
 2400  K90/4  1.375-6    342373
 2400  K90/2  1.375-6    333298
 2400  K90/4  1.750-6    341883
 2500  K90/4  1.375-21    342361
 2500  K90/4  1.375-6    333268
 2500  K90/2  1.375-6    333267
 2500  K90/4  1.750-20    342377
 2500  K90/4  1.750-6    342376
 35N / 2200  K90/2  1.375-6  1000nm  4350301
 35N / 2200  K90/2  1.375-6  1350nm  4350302
