Walterscheid K96/4 Clutches

K96/4 Friction Clutch (4 disc adjustable )

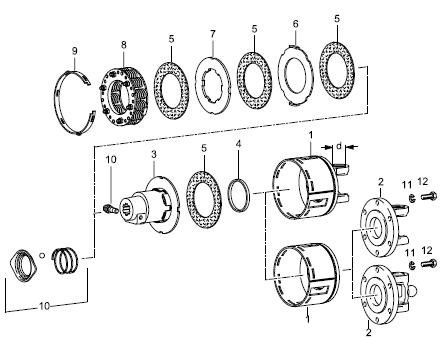

Drawing#

1

Housing

	Part Number
2400	367749
2500	161386
2600	177116

6

Bushing

# 367718

8/14

Hub

Spline Size	Lock Ball #	Clamp #	CC Lock #
1.375-6	367751	387015	198492
1.375-21	165869	175050	101600
1.75-6		183517	196380
1.75-20		175052	197835

7

(Qty-4)

# 177009

9

Drive Plate

# 367726

10

Drive Plate

# 367725

11

Spring Pack

# see spring chart

12

Setting Ring

# 367720

FK96/4 Combo Clutch (4 disc adjustable ) Friction and Overrunning Protection

Drawing#

1

Housing

Series	Part Number
2400	367749
2500	161386
2600	177116

6

Bushing

# 367718

8

FK Outer Hub

9

Snap Ring (2)

# 702100

10

Washer (2)

1.375"	1.750"	1.750" split
304235	353203	367796

11

Spring (2)

# 332185

12

Key (2)

# 331737

14

Seal

# 169197

13

Inner Hub

Spline Size	Lock Ball #	Clamp #	CC Lock #
1.375-6	170020	185828	198492
1.375-21	172704	185830	101600
1.75-6		178094	196380
1.75-20		101176	197835

7

(Qty-4)

# 177009

9

Drive Plate

# 367726

10

Drive Plate

# 367725

11

Spring Pack

# see spring chart

12

Setting Ring

# 367720
