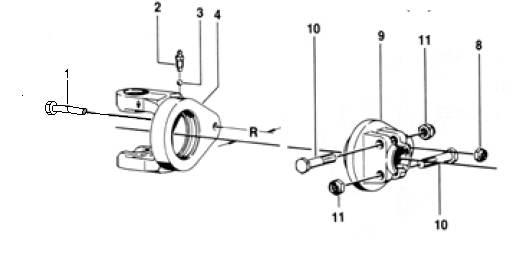

KB61/20 Shear Bolt



Drawing #

Radius & bolt diameter determines shear point
4
KB61/20 Yoke
Series
Radius
Diameter
Part Number
2400
48
8
324812
2400
56
10
331998
2500
56
10
338425
2500
64
10
349784
2
Zerk
 # 304123
3
Qty 24- * Balls
 # 099601
9
KB61/20 Hub
Spline Size
Radius
Diameter
Clamp #
CC Lock #
1.375-6
56
10
335824(pin)
1.375-21
1.75-6
56
10
338426
1.75-20
56
10
382987
1/8
Shear Bolt & Nut
Bolt Size Bolt # (1) Nut #(8)
 7mm x 60
 8mm x 60
 10mm x 60
020454
020576
 12mm x 60



return to menu

KB61/30 Shear Bolt



Drawing #

Radius & bolt diameter determines shear point
4
KB61/30 Yoke
Series
Radius
Diameter
Part Number
2600
64
12
346422
2600
75
8
329235
2600
75
10
346764
2600
75
14
335173
2
Zerk
 # 304123
3
Qty 24- * Balls
 # 099601
9
KB61/30 Hub
Spline Size
Radius
Diameter
Clamp #
CC Lock #
1.375-6
75
8
329236
1.375-21
75
10
346765
1.75-6
75
10
354296
1.75-20
64
12
346423
1.75-20
75
10
186294
1/8
Shear Bolt & Nut
Bolt Size Bolt # (1) Nut #(8)
 7mm x 60
 8mm x 60
020575
 10mm x 60
020454
020576
 12mm x 70
020468
010490
14mm x 70
702338
304133
