Walterscheid Shear Bolt Clutches

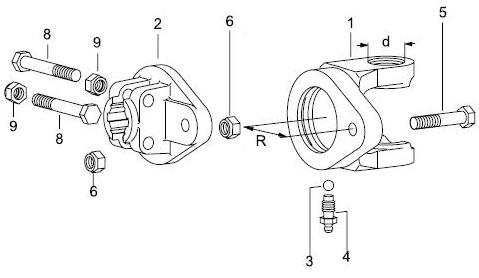

KB61/20 Component Parts

1.Yokes


Series
(R)adius

Bolt Diameter
Part Number
2300
48
8
334842
2400
48
8
324812
2400
56
8
353638
2400
56
10
331998
2500
56
10
338425
2500
64
10
349784

2. Hubs
Spline Size
Radius
Bolt Diameter
Part No
1.375-6
48
8
326909 (QD pin)
1.375-6
48
10
345232
1.375-6
56
10
335824(QD pin)
1.375-21
56
8
343132(QD pin)
1.75-6
56
10
338426(clamp)
1.75-6
64
10
349783
1.75-20
56
10
382987(clamp)
1.75-20
64
10
387508
3. Balls 099601 (24)
4. Zerk 304123
5 / 6 Shear Bolts & Nuts
Bolt Size Bolt # (5) Nut #(6)
 7mm x 60
304223
099609
 8mm x 60
020443
020575
 10mm x 60
020454
020576
 12mm x 60
020466
010490
8 / 9 Clamp Bolt & Nut
Bolt Size Bolt # (10) Nut #(11)
12mm x65
020467
010490
16mm x80
702351
304011

KB61/30 Component Parts

1.Yokes


Series
(R)adius
Bolt Diameter
Part Number
2600
64
12
346422
2600
75
8
329235
2600
75
10
346764
2600
75
14
335173

2. Hubs
Spline Size
Radius
Bolt Diameter
Part No
1.375-6
75
8
329236
1.375-21
75
10
346765
1.75-6
75
10
354296
1.75-20
64
12
346423
1.75-20
75
10
186294
1.75-6
75
14
335174
3. Balls 099601 (24)
4. Zerk 137955
5 / 6 Shear Bolts & Nuts
Bolt Size Bolt # (5) Nut #(6)
 8mm x 65
020444
020575
 10mm x 60
020454
020576
 12mm x 70
020468
010490
14mm x 70
702338
304133
8 / 9 Clamp Bolt & Nut
Bolt Size Bolt # (8) Nut #(9)
12mm x75
020469
010490
16mm x80
702351
304011



Complete Shear Bolt Clutches

Series Model Bore Radius Torque Part No
 2300  KB61/2  35mm / 1.375 round-8mm / .312 key  48mm x 8mm  130mm  387584
 2400  KB61/2  1.375-6  10mm@48mm  189mm  345231
 2400  KB61/2  1.375-6  8mm@48mm    326143
 2400  KB61/2  1.375R-.312 key  8mm@56mm  127mm  388473
 2400  KB61/2  1.750-6  10mm@56mm  138mm  360923
 2500  KB61/2  1.375-6  56 M10    355272
 2500  KB61/2  1.75-20  56 M10    382986W
 2500  KB61/2  1.750-6  56 M10    338427
 2600 PRO  KB61/30  1.75-20  64    346424
 2600 PRO  KB61/30  1.75-6  75/10    354298
