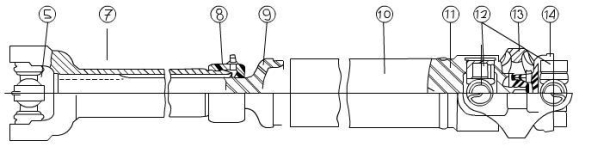

Type 1
Must identify universal joint size
| Assembly # | Series | UJ | Slip Yoke |
Stub Shaft |
Tube | Ball Stud Yoke |
Center Yoke |
|
|---|---|---|---|---|---|---|---|---|
909364-2600 *********
|
1310 |
5-785X |
2-3-8841KX |
2-40-1771 |
1.25x.120 |
2-28-2807X |
2-26-497 |
211544X |
909365-2600 ******** 5009642-2600 |
1310 |
5-785X |
2-3-8001KX |
2-40-1701 |
2.0x.120 |
2-28-2867X 2-28-2947X |
2-26-497 |
211544X 211355X |
909363-2600 ******* 5009643-2600 |
1310 |
5-785X |
2-3-8021KX |
2-40-1851 |
2.5x.083 |
2-28-2887X 2-28-2957X |
2-26-497 |
211544X 211355X |
911818-2600 *******
|
1330 |
5-790X |
2-3-8041KX |
2-40-1851 |
2.5x.083 |
2-28-3067X 2-28-2137X |
2-26-527 |
211996X 211179X |
1350 *******
|
1350 |
5-799X |
3-3-488KX |
3-40-1611 |
3.0x.083 |
3-28-1327X |
3-26-757 |
212019X |
Type 2
Must identify flange patterns

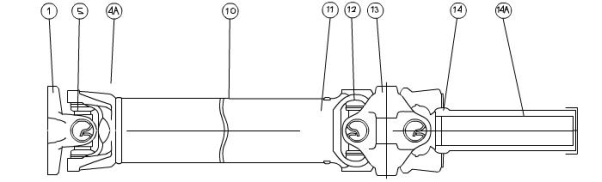

Type 3
Must identify flange pattern and CV slip size
| Assembly# | Series | UJ | Flange Yoke |
Tube Yoke |
Tube | Ball Stud Yoke |
Center Yoke | CV Socket Yoke
|
CV Slip Yoke |
|---|---|---|---|---|---|---|---|---|---|
*918813 |
1330 |
5-790X |
2-2-1369 |
2-28-1697 |
3.0x.083 |
2-28-3447X |
2-26-527 |
211996X |
*2-3-12161X 2-3-12961X |
*919526 |
1350 |
5-799X |
3-2-1579 |
3-28-57 |
3.0x.083 |
3-28-1327X |
3-26-757 |
212019X |
*3-3-4531X 3-3-5861X 3503-32CV |
** bolts # 5-73-1228(4)

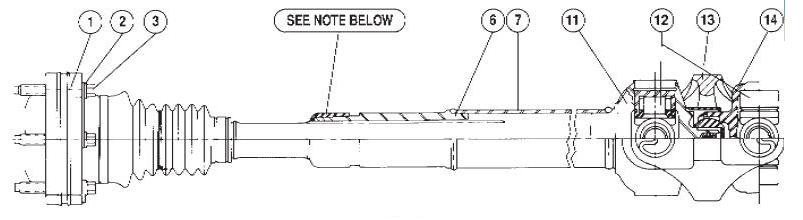

Type 4
Must identify bolt circle pattern
| Assembly | Series | CV | Tube | Tube Yoke | UJ | Bolts | Application |
|---|---|---|---|---|---|---|---|
032DS85002 |
1310 |
032SG80002 |
2-28-3187 |
5-785X |
211982X |
Ford Explorer |

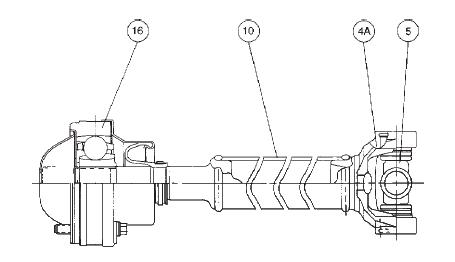

Type 5
Must identify CV size and bolt circle pattern.
| Assembly | Series | CV | Tube | Ball Stud Yoke |
Center Yoke |
Socket Yoke |
UJ |
|---|---|---|---|---|---|---|---|
919649 |
1310 |
918329 |
2-28-2827X |
2-26-497 |
211544X |
5-785X |
