1000 Series Driveline Parts  L6 Series     H10 Series

1000 Universal Joints * (A) .938 x (B) 2.50 (1.50" inside lockup)



universal joint
 Part No  Vendor  Detail
 1-0170  Neapco
 5-170X  Dana
 5-170-1X  Dana  zerk in cap

Assemblies

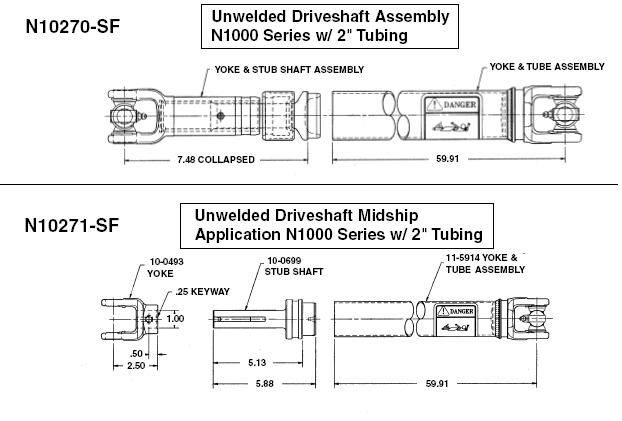

Part # N10270-SF


Part # N10271-SF

Pillow Blocks Shield Kit # 68-1000


Part # 6700111



1000 Tube Yokes

Part Number Tube Size (H) Length Angle
 10-26-37  1.25x.095  2.5600  60
 10-28-97  1.750x.065  2.000
 10-28-17  1.75x.065  2.00  60
 10-2817  2.00x.083
 10-1005  2x.083  2.625

1000 Series Center Yokes

Part Number Length Angle
 10-5303  1.687  5
 10-26-47  2.125
 10-5361  2.500  18
 10-5331  3.188  45


1000 Flange Yokes

Part Number Pilot Bolt Circle Length Angle Holes Notes
 10-2-29  2.250  2.750  1.562    4
 10-0229  2.250  2.750  1.690    4@.312 SAE RECTANGUL


1000 Slip Yokes, splined

Part Number Diameter Splines (J) Length (F) Length Angle Dust Cap
 10-0381  1.125  10
 10-3-121KX  1.250  16  4.438  1.4000  60  D2A
 10-1765  1.250  6  5.5
 10-3-18KX  1.250  16  5.50  1.5620  60  D2A


1000 Slip Yokes, round

Part Number (C) Bore (D) Length Bore Length
 10-3-13X  .750  .1875
 10-3-23X  .812  .250
 10-3-33X  .875"  .250"
 10-3-83X  1.00  .250
 10-3-183X  1.125  .312
 10-3-163X  1.250  .312


1000 Slip Yokes, other

Part Number (C) Bore Bore Type (D) Length
 10-0312  .750 Square  Square  5.50
 10-1769  .750x.875 Rectangula  Rectangular  5.50
 10-3162  .875 HEX  Hex  5.50
 10-3-22X  .875 Square  Square
 10-3122  1.00 Square  Square  5.50
 10-0332  1.125 HEX  Hex  5.50

1000 Series End Yokes

 Dana's complete listing of End Yokes

Round Bore

Part Number Bore Key (cuj-e) Length Bore Length Notes
 10-4373  .625  .1875
 754693  .750  .1875  1.625
 10-0413  .750"  .188"
 10-4-23  .750"  .250"
 10-0453  .875"  .188
 10-0463  .875"  .250"
 10-0493  1.00  .250  2.500"
 754723  1.00  .250  1.625
 10-4-103  1.125  .250  2.500"
 10-4-153  1.188"  .312"
 10-4-123  1.250  .312  2.500"
 10-4-183  1.250"  .250"
 10-4-193  1.250"  .312"  2.500"
 10-4-293  1.375"  .312"
 10-4-223  1.50  .375

Splined Bore

Part Number Diameter Splines (S) Length (Q) Bore (R) Seal ... Notes / Model
 10-4-641  .875  13  3.812    1.500
 10-4-481  .875  13  2.500    1.625
 10-4-21  1.250"  6
 10-4-31  1.375  6  2.50

Hex Bore

Part Number Bore (D) Length Bore Length Notes
 10-4-282  .875
 10-4-32  1.125"

Square Bore

Part Number Bore (D) Length Bore Length Notes
 10-4-22  .750"
 10-4-12  .875"
 10-0452  1.00  2.50
 10-4-262  2.00"    groove

"Steering" Clamp Yokes

Part Number Diameter Number of Splines 'S' Length 'J' Length
 10-4-431SX  0.7350  36  2.500
 10-4-611SX  0.739  26/36  2.500
 10-4-631SX  0.7390  30/36  2.500
 10-4-931SX  0.7390  30/36  2.5000
 10-4-941SX  0.811  30/36  2.500
 10-4-501SX  0.811  30/36  2.500
 10-4-621SX  0.813  18/36  2.500
 10-4-601SX  0.870  30/36  2.500
 10-4-951SX  0.870  30/36  2.50
 10-4-391SX  0.994  30/36  2.500
 10-4-451SX  0.994  30/36  2.500
 10-4-371SX  0.994  30/36  2.500
 10-4-661SX  1.00  34/48  2.500
 10-4-851SX  1.000  14/36  2.500
 10-4121  1.011  26/36  2.50  SERRATED
 10-4961  1.011  26/36  2.50  SERRATED



1000 Yokeshafts

Part Number Diameter Splines (K) Length (L) Length of Spline (R) Length of Shaft Angle Notes
 10-0615  1.00  15  5.375        AG
 10-82-21  1.250  16  5.562  1.625  3.688  60
Yokeshaft Calculations

1000 Series Quick Disconnect Yokes

Part Number Diameter Splines Length (cuj-end) Collar or Pin Kit
 10-5366  1.00  15  2.812
 10-5412  1.375  21  3.562
 10-5411  1.375  21  3.562
 10-4137  1.375  6  3.562
 10-4139  1.375  6  3.562
