2400 Series Walterscheid Driveline Parts

universal joint

2400 Universal Joints

Cup (A) Length (B) HP@540 RPM HP@1000 RPM Category Torque
32
76
80
133
4
3100nm

Nominal torque is a "working" torque figure. Factored into this is life expectancy, operating angle and greasing requirements.

Part Number

Cup Diameter

(A)

Length

(B)

Snap Ring

Nominal Torque

(ft lbs)

Series Type
  312410
32
76
outside
675
2400

  188105
32
76
outside
675
zerk in cap

  342221W
32
76
675
2480 CV
 dual dim
  135077
32
76
outside
675
P480
 outside
  135078
32
76
outside
675
P480
 inside

2400 Profile Parts (1b * 2a)

(2) Inner 1b Tube Yoke
(3) 1b Inner Tube
(4) 2a Outer Tube
(5) Outer 2a Tube Yoke

(6) Roll pin# 020616

10x75mm

(6) Roll pin# 020617

10x80mm

shielded assembly # 4C41056

Shield Kit SC25

Outer Cone Outer Shield Bearing Outer Tube Inner Tube Inner Shield Bearing Inner Cone



2400 Profile Parts (S4 * S5)

(2) Inner S4 Tube Yoke
(3) S4 Inner Tube
(4) S5 Outer Tube
(5) Outer S5 Tube Yoke

(6) Roll pin# 020617

10x80mm

(6) Roll pin# 020617

10x80mm

Shield Kit SC25

Outer Cone Outer Shield Bearing Outer Tube Inner Tube Inner Shield Bearing Inner Cone



Midship Type

Midship type shafts must be designed and quoted per your specifications <spec sheet>

2400 Splined Parts

(2) Splined Bar Yoke
(3) 40mm x 20 shaft
(4) Sleeve
(5) Tube Yoke

Shield Kit SC25

Outer Cone Outer Shield Bearing Outer Tube Inner Tube Inner Shield Bearing Inner Cone



2400 Series Quick Disconnect Yokes

Part Number Diameter Splines Length (cuj-end) Collar or Pin Kit
 380908  1.375  21  123mm  collar
 103581  1.375  21  75mm(3.00")  pin style
 4241021  1.375  21  112mm
 136745  1.375  21  100MM
 380907  1.375  6  121mm  collar
 103655  1.375  6  92  pin
 136744  1.375  6  100  AS collar
 4241006  1.375  6  112mm
 106271  1.500  23  89mm  pin style
 362448  1.750  20  189mm  collar

Hex QD

Part Number Diameter Length (cuj-end) Collar or Pin Kit
 390985  1.125  123mm  collar
 136693  1.125  hex  62
 396184  1.25    pin



2400 Series Clamp Yokes

Splined

Part Number Diameter Number of Splines Bore Length cuj-end
 320684  1.375  21  62mm  112mm    splined
 319208  1.375  6  62mm  112mm    splined
 331053  1.750  20  62mm  112mm    splined
 320685  1.750  6  62mm  112mm    splined

Round

Part Number Diameter Key Bore Length Length cuj-end
 175054  1.125  hex  60mm  112mm    hex
 329034  1.250  .312  62mm  112mm    round
 329036  1.375  .312  62mm  112mm    round
 329038  1.500  .375  62mm  112mm    round
 320686  30mm  12mm  62mm  112mm    round
 A035330  30mm  8mm        non-interfering
 320687  35mm    62mm  112mm    round
 328519  40mm  12mm  62mm  112mm    round

Hex

Part Number Diameter Length cuj-end
 399515  1.125
 368184  1.250  112MM
 147393  1.500  3.125

2400 Series Straight Bores

Round

Part Number Bore Key (cuj-e) Length Bore Length Notes
 320690  1.250    105mm  55mm  pin hole
 380649  1.250  .312  105mm  55mm
 320691  1.375    105mm  55mm  pin hole
 385828  1.375  .312  105mm  55mm  pin hole
 382290  1.375  .375  105mm  55mm
 329042  1.438  .375  105mm  55mm
 380469  1.500  .375  105mm  55mm
 381830W  1.750  .375
 320689  40mm    105mm  55mm  pin hole
 321910  40mm  12mm  105mm  55mm

Splined

Part Number Diameter Splines (S) Length (Q) Bore (R) Seal ... Notes / Model
 385121  1.125  6  105mm  55mm
 108235  1.250  14  105mm  55mm
 320693  1.375  6  105mm  55mm    pin hole
 395888  1.750  20  103  50    set screw
 103802  40mm  20  36mm  75mm  none    zerk



2400 Series H Yoke

Part Number Length Angle
 023437  100mm
 186796  72mm

2400 Series Flange Yokes

Part Number Pilot Bolt Circle Length Angle Holes Notes
 023469  57F  84  85mm    6@8mm
 023474  57F blank  138  65mm    6@12mm
 325556  98 M  118      6@10mm
 320699  98 M  138  67mm    6@12mm

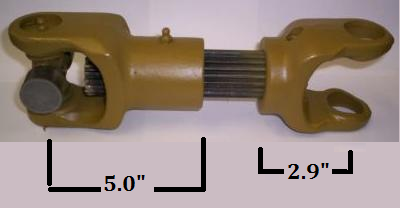

Short parts / With 40mm x 36mm x 20Splines
PART N0
DESCRIPTION
 Universal Joint w/zerk in cap
 Slip Yoke
 Bar Yoke
 Splined Shafting


2480 CV Parts         assembly # 4G41158

QD Yokes

L1=86 L= 126

Tractor
Part #
1.125-6
1.375-6
1.375-21
1.375-21 clamp
1.750-20

Y=32 , A=76

N=27, B=94

Universal Joint # 342221

Standard Tube

CV Body 4 - 1b Yoke (inner) 1b Tube 2a Tube 2a Yoke (outer)

L=104, d=27

L=92, L1=86

L=92, L1=86

Heavy Duty Tube

CV Body 4 - S4 Yoke (inner) S4 Tube S5 Tube S5 Yoke (outer)

L=104, d=27

L=92, L1=86

L=92, L1=86



2480 Shielding

CV Bell

CV Bearing

Flex-element Shield Bearing Outer Tube Inner Tube Shield Bearing Cone



Ball Yoke for round tube

# 397697

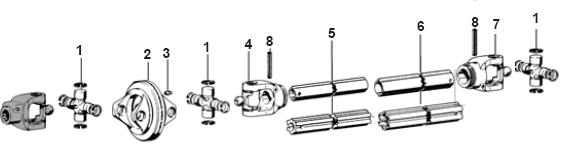

PW480 Components

seat OD=34mm

1
2
3
4
5
5
PW 480 QD Yokes
480 Front UJ
480 CV Body
480 Rear UJ
S4 Yoke
S5 Yoke
 1.375-6
 1.375-21
 1.750-20
 1.750-6

1b
2a


* PW480 universal joints are dimensionally identical to 2480, but not interchangeable



PW 480 Shielding

1 2 3 4 5 6 7 8
CV Bell CV bearing Shield Bearing Outer Tube Flex-element Inner Tube Shield Bearing Cone



 PW Shielding detail drawing

Walterscheid 2450 series 50 degree Constant Velocity

2400 Series Clutches & Overrunning Devices



2400 Series Overrunning Device

Part Number Model Diameter Splines Length (cuj-end) Connection
 394055  F5/1R  1.125  HEX    collar
 367685  F5/1R  1.375  21  155mm  collar
 367095  F5/1R  1.375  6  155mm  collar
 367694  F5/1R  1.375  6  155mm  clamp
 381347  F5/1R  1.375  key=.312  5.75  keyway*ss
 367689  F5/1R  1.750  20  155mm  collar

Breakdown sheet



2400 Series Shear Bolt

Part

Number

Model Diameter Splines

C-to-bolt

radius

Bolt

Diameter

Length

(cuj-end)

Torque

Rating

 326143  KB61/2  1.375  6  8mm@48mm      1600nm
 345231  KB61/2  1.375  6  10mm@48mm    189mm  2500nm
 353639  KB61/2  1.375  6  8mm@56mm      1860nm
 4240103  KB61/2  1.375  6  8mm@56  8    1860nm
 388473  KB61/2  1.375R  .312 key  8mm@56mm    127mm
 394063W  KB61/2  1.750  20  56  10mm  5.250
 360923  KB61/2  1.750  6  10mm@56mm    138mm

Breakdown sheet

2400 Series Radial Pin Clutch



Part Number Bore Torque Length Model
 359396  1.375-6  800nm    K33B
 362493  1.375-6  900nm    K33B
 102439  1.375-21  1100nm    K34B
 357178  1.375-6  1100nm    K34B
 357920  1.375-6  1200nm    K34B
 379373  1.375-21  1400nm    K35B
 362327  1.375-6  1200nm    K35B
 362941  1.375-6  1500nm    K35B
 328452  1.375-6  1500nm    K36B

Breakdown sheet

2400 Series K96 Friction Clutch



Part Number Diameter Splines Torque Connection Model
 101739  1.375"  6  1500nm  clamp  K96/4
 386598  1.375"  21    clamp  K96/4
 321166  1.375  6  1350nm    K92/4
 342373  1.375  6    clamp  K90/4
 342395  1.375  21    clamp  K90/4
 341883  1.750  6    clamp  K90/4
 333298  1.375  6    clamp  K90/2

Breakdown sheet





2400 Series K92 Friction Clutch

Spline Size
K92/2
K92/4
Torque Setting
1.375-6
320528
1.375-6
321166
1350nm
1.375-21
1.750-6
1.750-20

Breakdown sheet
