Walterscheid K96 Friction Clutches

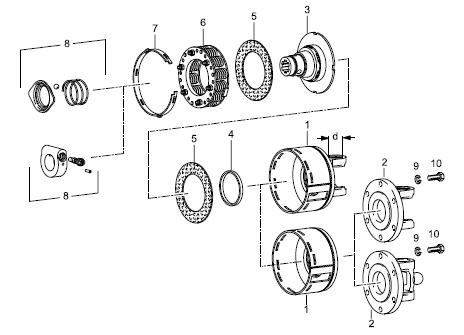

K96/2 Component Parts (2 disc)

1. Housing

Series
Part Number
2300
367759
2400
170022

EK Housing

x 138mm BC

367786

2. Flanges

Series
Pilot
Bolt Circle
Holes
Part Number
2500
98m
138
6
317807
2600
98m
138
12
334661
2700
98m
138
6
170049
4. Bushing
 # 367718

3. Hub

Spline Size
 1.375-6

367757

AS QD
 1.375-21

5. Friction Discs 100x157x3

(Qty-2)

 # 177009

6. Spring Pack

 click here to see spring chart

7. Setting Ring

 # 367720
 8.  QD & Lock Kits



K96/4 Component Parts (4 disc)

1. Housing
Part Number
2400
367749
2500
161386
2600
177116
Ek96 138BC
367767

2. Flanges to mate with #367767

Series
Pilot
Bolt Circle
Holes
Part Number
2500
98m
138
6
317807
2600
98m
138
12
334661
2700
98m
138
6
170049
4. Bushing
 # 367718

3. Hub

Spline Size
 1.375-6
367751
AS QD
1.375-6
387015
Clamp
 1.375-6
198492
CC Lock
 1.375-21
165869
AS QD
 1.375-21
175050
Clamp
 1.375-21
101600
CC Lock
 1.75-6
183517
Clamp
 1.75-6
196380
CC Lock
 1.75-20
175052
Clamp
 1.75-20
197835
CC Lock
 # 177009

6. Drive Plate

  # 367726
7. Drive Plate
 # 367725

8. Spring Pack

 click here to see spring chart
9. Setting Ring
 # 367720
 10  QD & Lock Kits



Complete K96 Clutches
