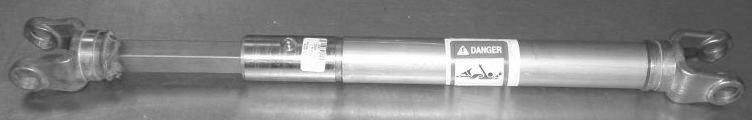

| 14 Series * Horse Power: 33 @ 540 RPM 62 @ 1000 RPM |
|
| 14 Series Universal Joints * (A)1.125 x (B)2.625 |
|
| Part No |
Detail |
| 1-2075 |
|
| |
Zerk in cap |
| 200-1400 |
|
|
| 14 Series Bar Yokes |
|
| Rectangular Bore |
| Bore |
Part No |
Length |
Detail |
| 1.00 x 1.125 |
20-9129 |
|
|
| |
300-1400 |
|
|
| 1.250 x 1.375 |
700-1400 |
|
fits 70-1250 rectangular tube |
| |
20-9313 |
|
|
| Splined Bore |
| Bore |
Part No |
Length |
Detail |
| 1.312 - 20 |
301-1400 |
|
|
|
| 14 Series Center Yokes |
|
|
| 14 Series Tube Yokes |
|
| Tube Size |
Part No |
Length |
| 2 x .083 |
701-1400 |
|
| |
20-9131 |
|
|
| 14 Series Sleeves |
|
| Rectangular Bore |
| Bore |
Tube |
Part No |
Length |
| 1.0 x 1.125 |
2.00X.083 |
500-1400 |
|
| |
|
53-1834 |
|
| |
|
53-2034 |
|
| Splined Bore |
| 1.312 - 20 |
2.00x.083 |
501-1400 |
|
|
|
| 14 Series Shafting |
| |
| Shaft Size |
Part No |
Detail |
| 1.00 x 1.125 |
400-1618 |
|
| |
73-1001 |
|
| 1.312 - 20 spline |
404-2120 |
|
|
| 14 Series Quick Disconnects (collar style QD yokes are approved by OSHA) |
|
| Hex |
Part No |
Length |
Detail |
| 1.187 - Hex |
102-1418 |
|
|
| Spline |
Part No |
Length |
Detail |
| 1.375 -6 |
102-1406 |
|
|
| |
20-9309 |
|
|
| |
100-1406 |
|
Ball collar OSHA approved |
| |
20-9330 |
|
Ball collar OSHA approved |
| Spline |
Part No |
Length |
Detail |
| 1.375 -21 |
102-1421 |
|
|
| |
100-1406 |
|
Ball collar OSHA approved |
| |
20-9321 |
|
Ball collar OSHA approved |
| |
20-9325 |
|
|
| Spline |
Part No |
Length |
Detail |
| 1.750 - 20 |
101-1420 |
|
|
| |
100-1420 |
|
|
|
| 14 Series Spline Bored End Yokes |
|
| Bore - Splines |
Part No |
Length |
Detail |
| 1.125 - 6 |
801-1418 |
|
pin hole |
| |
20-9180 |
|
|
| 1.250 - 6 |
801-1420 |
|
|
| |
20-9311 |
2.750 |
|
| |
20-9306 |
3.500 |
fits 53-2047 |
| 1.375 - 6 |
801-1406 |
|
pin hole |
| |
20-9132 |
3.750 |
|
| 1.375 - 21 |
801-1421 |
|
pin hole |
| |
20-9193 |
3.750 |
|
|
| 35N Square Bore End Yokes |
|
| Square Bore |
Part No |
Length |
Detail |
| .875 |
804-1414 |
|
|
| 1.00 |
804-1416 |
|
|
| |
|
|
|
| 1.125 |
804-1418 |
|
|
| |
20-9183 |
|
|
| 1.1875 |
804-1419 |
4.50 |
|
| |
|
|
|
| 1.250 |
804-1420 |
|
|
| |
20-9127 |
|
|
|
| 14 Series Hex Bored End Yokes |
|
| Hex Bore |
Part No |
Length |
Detail |
| 1.125 |
800-1418 |
|
|
| 1.250 |
20-9191 |
|
|
| |
805-1420 |
|
|
|
| 14 Series Clamp Yokes |
|
| Bore |
Part No |
Length |
Detail |
| 1.375 - 6 |
|
|
|
| |
|
|
|
| 1.375 - 21 |
|
|
|
| |
|
|
|
| 1.750 - 20 |
|
|
|
| |
|
|
|
| 1.75 - 27 |
|
|
|
|
| 14 Series Round Bore End Yokes |
|
| Bore - keyway |
Part No |
Length |
Detail |
| 1.00 - .250 |
20-9115 |
3.75 |
|
| |
800-1416 |
|
|
| 1.062 - .250 |
800-1417 |
|
|
| 1.125 - .250 |
20-9117 |
|
|
| |
800-1418 |
|
|
| 1.125 - .250/.312 |
20-9216 |
3.75 |
double key |
| |
806-1418 |
|
|
| 1.187 - .250 |
20-9118 |
3.75 |
double key |
| |
800-1419 |
|
|
| 1.187 - .250/.312 |
20-9217 |
3.75 |
double key |
| |
806-1419 |
|
|
| 1.250 - .250 |
800-1420 |
|
|
| |
20-9302 |
3.75 |
|
| 1.250 - .312 |
20-9119 |
|
|
| 1.250 - .250/.312 |
20-9218 |
3.75 |
double key |
| |
806-1420 |
|
|
| 1.375 - .312 |
800-1422 |
|
|
| |
20-9120 |
|
|
| 1.437 - .375 |
800-1423 |
|
|
| |
20-9154 |
|
|
| 1.500 - .375 |
800-1424 |
|
|
| |
20-9307 |
|
|
|
| 14 Series Shear Bolt |
|
| Bore |
Part No |
Detail |
| 1.375 - 6 |
104-1406 |
|
| 1.375 - 21 |
104-1421 |
|
|

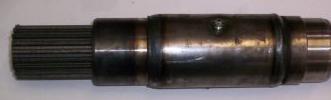

| 14 Series Midship Stub |
|
| Bore |
Part No |
Detail |
| 1.375 - 6 |
|
|
|
| 14 Series Shielding |
 |
| Shield |
Shield Bearing Kit |
Detail |
| 69-1248 |
56-2000 |
|
| 900-2548 |
921-1200 |
Standard Shield |
|
| |
