Weasler logo Constant Velocity PTOs

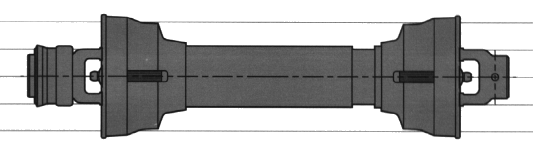

Standard Weasler CV Shafts

35N: series - CAT 5 59HP @ 540 RPM / 100HP @ 1000 RPM
Part# 14503548 35N w/ 1.375-6 Tractor
Part# 14603548 35N w/ 1.375-21 Tractor
Part# 14703548 35N w/ 1.750-20 Tractor

55N: series - CAT 6 115HP @ 540 RPM / 179HP @ 1000 RPM
Part# 14505548 55N w/ 1.375-6 Tractor
Part# 14605548 55N w/ 1.375-21 Tractor
Part# 14705548 55N w/ 1.750-20 Tractor

Above part numbers do not include the rear UJ or the implement connecting yoke.



50 degree CV components.

35N: series 59HP @ 540 RPM
Part# 151-3506 35N 1.375-6 Tractor
Part# 151-3521 35N 1.375-21 Tractor
Part# 850-3522 35N 1.375-.312 key * pin hole
Part# 857-3520 35N 1.25 RD CLAMP
Part# 857-3524 35N 1.50 RD CLAMP
Part# 555-3500 35N 'H' Yoke
Part# 750-3500 35N CV Tube Yoke

55N: series 115HP @ 540 RPM
Part# unavailable 55N 1.375-6 Tractor
Part# unavailable 55N 'H' Yoke
Part# unavailable 55N CV Tube Yoke



Weasler PTO by Series:

Weasler Series

(UJ= 0.9687x1.453 inside lock)    16 HP@540 RPM / 30 HP@1000 RPM
(UJ= 1.062x1.812 inside lock)    24 HP@540 RPM / 45 HP@1000 RPM
(UJ=1.125x2.625)    33 HP@540 RPM / 62 HP@1000 RPM
(UJ= 1.250x3.219)    59 HP@540 RPM /111 HP@1000 RPM
(UJ= 1.312x2.797 inside lock)    87HP@540 RPM /165 HP@1000 RPM
(UJ=1.533x4.30)    115HP@540 RPM /184 HP@1000 RPM
(UJ=1.775x4.960)   171HP@540 RPM /264 HP@1000 RPM * unavailable
Constant Velocity available in sizes 14,35,55
