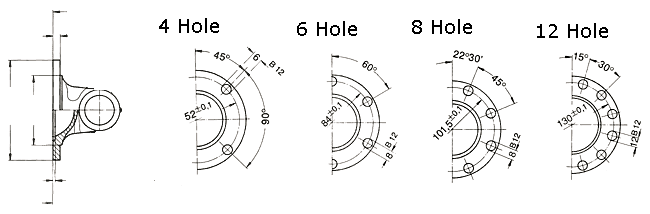

DIN Flange Patterns

Outside Diameter

Pilot Diameter

Bolt Circle

Number of Holes

58mm
30mm
47mm
4x5mm
65mm
35mm
52mm
4x6mm
4x8mm
75mm

42 mm

62 mm

6x6mm
4x6.4mm
4x8mm
90mm

47 mm

74.5 mm

4x8mm

100mm

57 mm

84 mm

6x8mm

120mm

75 mm

101.5 mm

8x8mm
8x10mm
150mm

90 mm

130 mm

8x10mm
8x12mm
165mm

95 mm

140 mm

8x16mm

180mm

110 mm

155.5 mm

8x12mm
8x14mm
10x16mm
14x16mm
225mm
140mm
196mm
8x16mm
250

8x16mm
8x18mm



Guess what ?

If you know the specifications of the drive shaft you need, we can build and ship it to your door.

We carry a wide variety of Companion Flanges (HUBS!)

Almost all orders are filled within 24 hours. Many times even sooner.
