WALTERSCHEID QD Repair Kits

QS Lock Style

QS-Kits

Shaft Size Part# used on series:
1.125-6  376104 2100,2200,2300
1.375-6 * 1.375-21  376105 2100,2200,2300,2400
1.375-6 * 1.375-21  376106 2500,2600
1.75-6 * 1.75-20  376107 2300,2400,2500,2600,2700



AS Lock Style

AS-Kits

Shaft Size Part# used on series
1.375-6 * 1.375-21  381908 2100,2200,2300
1.375-6 * 1.375-21  364915 2500,2600
1.75-6 * 1.75-20  364916 2300,2400,2500,2600



QR (Old Ball Lock)

Part#(s interchangable)

 341953

 4200040

Clamping Cone 1.375"


 107540
 4200358

Clamping Cone 1.75"
 107542
 4200359

Bridge, Clamps & Bolts
Shaft Diameter
1.375"
1.750"
Bridge
Nut
Bolt
complete kit

CC Ring Version

Shaft Diameter

D

Ring Inside Diameter

A

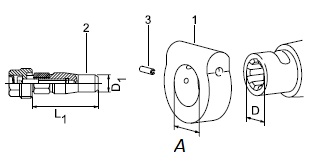

 L1 1. Clamping Ring 2. Clamping Cone 3. Pin
1.375"
50mm
48.5mm
1.750"
59mm
53mm
