2500 Series Walterscheid Driveline Parts

universal joint

2500 Universal Joints

Cup (A) Length (B) HP@540 RPM HP@1000 RPM Category Torque
36
89
109
170
5
4000nm

Nominal torque is a "working" torque figure. Factored into this is life expectancy, operating angle and greasing requirements.

Part Number

Cup Diameter

(A)

Length

(B)

Snap Ring

Nominal Torque

(ft lbs)

Series Type
  312209
36
89
outside
2500

  122079
36
89
outside
P500
 zerk in cap
  116502
36
89
outside
P580
 CV inside
  116497
36
89
outside
P580
 CV outside
  116405
36
89
outside
110
2500
 zerk in cap
  384316
36.00
89.00
outside
110.00
2580 CV

assembly # 4C51058

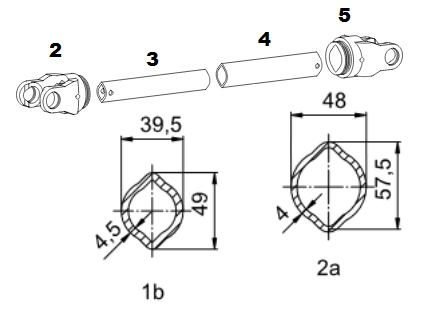

2500 Profile Parts (1b * 2a)

(2) Inner 1b Tube Yoke
(3) 1b Inner Tube
(4) 2a Outer Tube
(5) Outer 2a Tube Yoke

(6) Roll pin# 304046 10x90mm

L= 106mm * D= 36mm

(6) Roll pin# 304046 10x90mm

L= 112mm * D= 36mm

Shield Kit SC25

Outer Cone Outer Shield Bearing Outer Tube Inner Tube Inner Shield Bearing Inner Cone



2500 Profile Parts (S4 * S5)

(2) Inner S4 Tube Yoke
(3) S4 Inner Tube
(4) S5 Outer Tube
(5) Outer S5 Tube Yoke

(6) Roll pin# 304046 10x90mm

L= 106mm * D= 36mm

(6) Roll pin# 304046 10x90mm

L= 112mm * D= 36mm

Shield Kit SC25

Outer Cone Outer Shield Bearing Outer Tube Inner Tube Inner Shield Bearing Inner Cone



P500 PRO Profile Parts (S4 * S5)

UJ# 122079

(2) Inner S4 Yoke (3) S4 Inner Tube (4) S5 Outer Tube (5) Outer S5 Yoke

(6) Roll pin# 304046 10x90mm

L= 106mm * D= 36mm

(6) Roll pin# 304046 10x90mm

L= 112mm * D= 36mm





Shield Kit 2500 Pro

Outer Shield Bearing Outer Tube and Cone Inner Tube and Cone Inner Shield Bearing

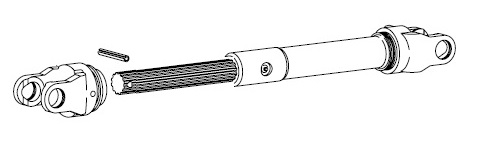

2500 Splined Parts

(2) Splined Bar Yoke
(3) 40mm x 20 shaft
(4) Sleeve
(5) Tube Yoke

L= 106mm * D= 36mm

 386544=2.25x.120
 396054=2.375x.156
 391137=2.50x.120

Shield Kit SC25

Outer Cone Outer Shield Bearing Outer Tube Inner Tube Inner Shield Bearing Inner Cone



2500 Series Quick Disconnect Yokes

Part Number Diameter Splines Length (cuj-end) Collar or Pin Kit
 362430  1.375  21    381908
 4251021  1.375  21
 4251321  1.375  21
 097138  1.375  21
 149111  1.375  21  98mm  pin
 362428  1.375  6    381908
 4251006  1.375  6
 4251306  1.375  6
 128785  1.50  23  100  85
 097313  1.75  6  120  96
 362434  1.750  20  5.00
 4251320  1.750  20
 362432  1.750  6

Hex QD

Part Number Diameter Length (cuj-end) Collar or Pin Kit
 102590  1.125



2500 Series Clamp Yokes

Splined

Part Number Diameter Number of Splines Bore Length cuj-end
 4258506  1.375  6
 4258521  1.375  21
 393375  1.500  23    4.50    splined
 335937  1.750  27        splined
 195097  1.750  6        cc lock
 195099  1.750  20        cc lock
 4258540  1.750  20
 4258547  1.750  6

Round

Part Number Diameter Key Bore Length Length cuj-end
 329044  1.375  .375"        round
 381074  1.500  .375        round
 329045  1.500"  .375"        round
 333863  1.750  .375"        round
 314921  35mm  10mm        round

Hex

Part Number Diameter Length cuj-end

2500 Series Straight Bores

Round

Part Number Bore Key (cuj-e) Length Bore Length Notes
 4258022  1.375  .375
 320793  1.375"        pin hole
 329048  1.375"  .375"
 320794  1.438        pin hole
 4258024  1.50  .375
 320795  1.500"  .375"      pin hole
 4258028  1.750  .375
 381608  1.750"  .375"
 329050  1.750"  .500"
 392749  1.9375  0.50
 382192  2.00"  .500"
 320796  35mm  10
 332916  45  14

Splined

Part Number Diameter Splines (S) Length (Q) Bore (R) Seal ... Notes / Model
 326648W  1.375  6      none    10mm pin hole
 25001.75X27  1.7500"  27  4.750"  2.4375"



2500 Series H Yoke

Center Yokes

Part Number Length Angle
 135954  100
 023476  118

2500 Series Flange Yokes

Part Number Pilot Bolt Circle Length Angle Holes Notes
 4250325    167      6x12.1  K90/4T
 023979  75 F  101.5mm  96    8 x 8.2  DIN
 330588  80 F  165  70    6 x 13.2  Howard
 331038  90 F  130mm  72    8 x 10.2
 317807  98 M  138  74    6x12
 338938  98 M  138mm  72    6x12(based on 8)


2580 Series & PW580 CV Parts

QD Yokes

L1=100 L= 139

Tractor
Part #
1.375-6
1.375-6 clamp
1.375-21
1.375-21 clamp
1.750-20
1.75-6
1.75-20 clamp

Y=36 , A=89

N=32, B=106

Universal Joint # 384316



CV Body 4 - S4 Yoke (inner) S4 Tube S5 Tube S5 Yoke (outer)

L=118, d=32

L=106, L1=100

L=106, L1=100

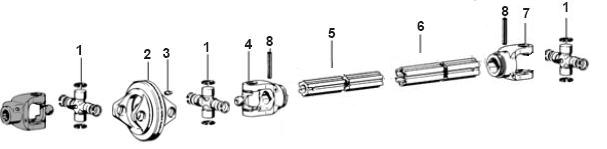

Splined 2580 CV Parts

CV Body Splined Ball Yoke 40mm x 20 shaft Sleeve Tube Yoke

L=118, d=32

L=106, L1=100

CV Body Splined Ball Yoke 1.687" x 20 shaft Sleeve Tube Yoke

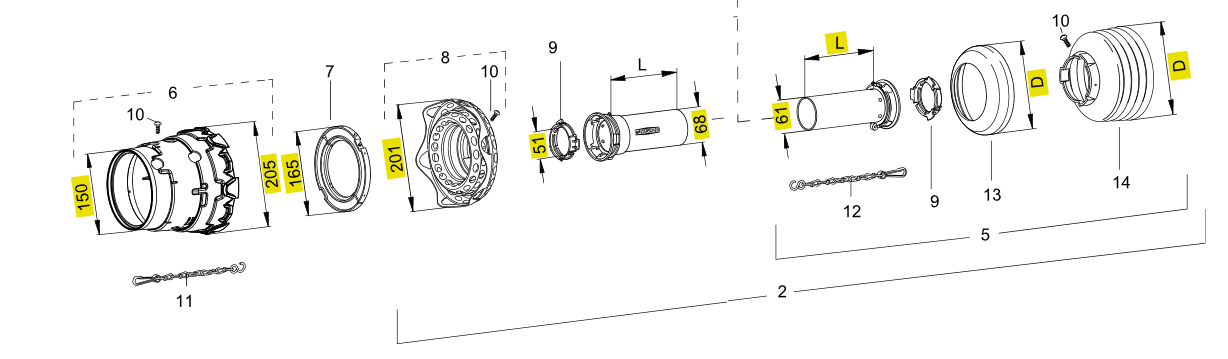

2580 Shielding

CV Bell CV bearing Cone Shield Bearing Outer Tube Inner Tube Shield Bearing Cone

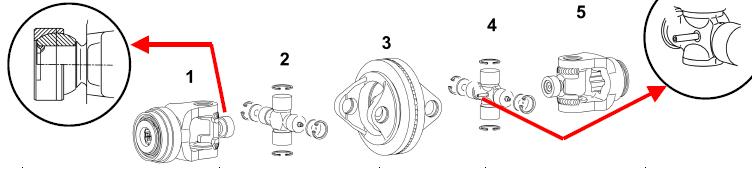

PW580 Components

1
2
3
4
5
5
PW 580 QD Yokes
580 Front UJ
580 CV Body
580 Rear UJ
S4 Yoke
S5 Yoke
 1.375-6
 1.375-21
 1.750-20
 1.750-6



* PW580 universal joints are dimensionally identical to 2580, but not interchangeable

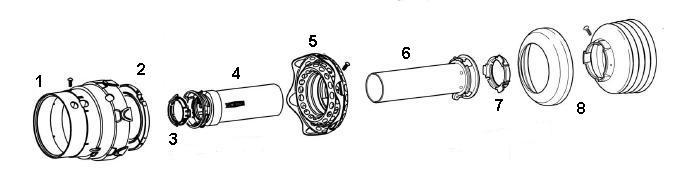

PW 580 Shielding part# 136367 (without CV cone)

1 2 3 4 5 6 7 8
CV Bell CV bearing Shield Bearing Outer Tube with Flex element Flex-element Inner Tube with cone Shield Bearing Cone



 PW Shielding detail drawing

2500 Series Clutches & Overrunning Devices



2500 Series Overrunning Device

Part Number Model Diameter Splines Length (cuj-end) Connection
 176929W  F5/1R  1.375  21    Clamp
 350867  F5/1R  1.375  6    Ball Collar
 138101  F5/1L  1.375  6    CLAMP
 365422  F5/1R  1.750  20    Clamp
 171260  F5/2R  1.750  20    clamp
 365421  F5/1R  1.750  6    Clamp
 112309  F5/2R  1.750  6    CC lock
 172693  F5/2R  1.750  6    CC lock

Breakdown sheet



2500 Series Shear Bolt (KB61/ )

Part

Number

Model Diameter Splines

C-to-bolt

radius

Bolt

Diameter

Length

(cuj-end)

Torque

Rating

 332013W  KB61/2  1.375  21  56 M10  10mm    2920nm
 355272  KB61/2  1.375  6  56 M10      2920nm
 4250104  KB61/2  1.375  6        2920nm
 382986W  KB61/2  1.75  20  56 M10      2920nm
 4250105  KB61/2  1.750  20  56M12  12    4200nm
 338427  KB61/2  1.750  6  56 M10      2920nm
 392340  KB61/2  1.9375 RD  0.50 KEY  56

Breakdown sheet

2500 Series K96 and K90 Friction Clutch

Part Number Diameter Splines Torque Connection Model
 386732  1.375"  21  1650nm  clamp  K96/4
 386185  1.375"  6  1500nm  clamp  K96/4
 386681  1.750"  20    clamp  K96/4
 101742  1.750"  6  1800nm    K96/4
 175433  1.750"  6  2080nm  clamp  K96/4
 342376  1.750  6    clamp  K90/4
 342377  1.750  20    clamp  K90/4
 4250306  1.375  6  1500  cc  K90/4T
 4250305  1.750  20  1500nm  Clamp  K90/4T
 F4L6734170C  1.750  6  1450nm  clamp  FF4

Breakdown sheet





2500 Cutout Clutches "Automatic" or "Cam"

2500 Series K64 Automatic Cam Clutch

Part Number Model Diameter Splines Length (cuj-end) Torque
 134467   K64/24  1.750  20    3500nm
 693363  K64/22  1.375  6    2000nm
 137705  K64/22  1.750  6    2200nm
 135416W  K64/24  1.375  6    2700nm
 135362W  K64/24  1.750  6    2700nm

Breakdown sheet
