SPL350 Series Driveline Parts

SPL350 Universal Joints

straps & spring tabs

universal joint

Part Number Cup Diameter Length (B) Snap Ring Nominal Torque Series Type

SPL350SFX 2.559 6.772 25815 SPL350

Tube Yokes
Flange Yokes
Splined Sleeve
End Yokes
Yokeshafts
Midship
Interaxle
top

SPL350 Tube Yokes

Dana's complete listing of Tube Yokes

Part Number Tube Size (H) Length Angle

350-28-10018745 5.51x.197 4.154

Tube Yokes
Flange Yokes
Splined Sleeve
End Yokes
Yokeshafts
Midship
Interaxle
top

SPL350 Flange Yokes

Dana's complete listing of Flange Yokes

Tube Yokes
Flange Yokes
Splined Sleeve
End Yokes
Yokeshafts
Midship
Interaxle
top

SPL350 Sleeves

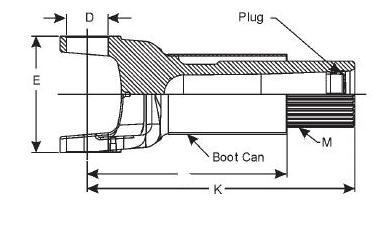

SPL350 Slip Yokes

Tube Yokes
Flange Yokes
Splined Sleeve
End Yokes
Yokeshafts
Midship
Interaxle
top

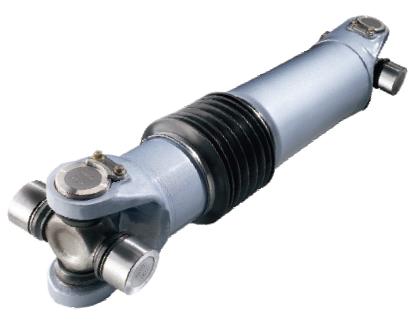

SPL350 Yokeshafts

Part Number Diameter Splines (K) Length (L) Length of Spline (R) Length of Shaft Angle Notes

350-82-1001874 3.453 32 12.4

Tube Yokes
Flange Yokes
Splined Sleeve
End Yokes
Yokeshafts
Midship
Interaxle
top

SPL350 End Yokes

SPL350 Midship End Yokes

Part Number Diameter Splines (Q) Bore (S) Length Mates with

350-4-11-1 2.747 68 2.433 5.641 350-53-23770

Tube Yokes
Flange Yokes
Splined Sleeve
End Yokes
Yokeshafts
Midship
Interaxle
top

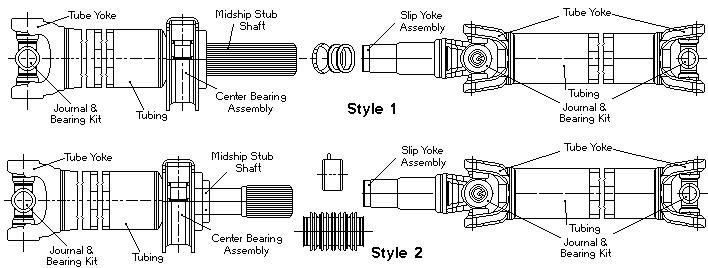

SPL350Mid Ship Assembly

Diameter Splines Tubing Stub Center Bearing Fixed Yoke

2.707 68 4.593x.180 350-53-23770 350CB0001X 350-4-11-1

SPL350 Mid Ship Assembly
