2600 Series Walterscheid Driveline Parts

 2400    2500    2700
universal joint

2600 Series Universal Joints # 121146

Cup (A) Length (B) HP@540 RPM HP@1000 RPM Torque
42
104
167
270

Nominal torque is a "working" torque figure. Factored into this is life expectancy, operating angle and greasing requirements.

Part Number

Cup Diameter

(A)

Length

(B)

Snap Ring

Nominal Torque

(ft lbs)

Series Type

2600 Profile Parts (S4 * S5 * SC25)

Inner S4 Yoke S4 Inner Tube S5 Outer Tube Outer S5 Yoke

(6) Roll pin# 304073 10x95mm

L= 130mm * D= 42mm

(6) Roll pin# 304073 10x95mm

L= 130mm * D= 42mm

Shield Kit SC25

Outer Cone Outer Shield Bearing Outer Tube Inner Tube Inner Shield Bearing Inner Cone

 Bareco Universal Shield #AS30090

2600 Profile Parts (S5 * S6 * SC35)

Complete PTO assembly minus implement yoke *** Benzi# T09121AAH17YYY

Inner S5 Yoke S5 Inner Tube S6 Outer Tube Outer S6 Yoke

(6) Roll pin# 304073 10x95mm

L= 130mm * D= 42mm

(6) Roll pin# 304073 10x95mm

L= 130mm * D= 42mm

118216 ** hardened

317585

Shield Kit SC35

Outer Cone Outer Shield Bearing Outer Tube Inner Tube Inner Shield Bearing Inner Cone

 Bareco Universal Shield #AS30090

2600 PRO Profile Parts (S5 * S6)

Inner S5 Yoke S5 Inner Tube S6 Outer Tube Outer S6 Yoke

(6) Roll pin# 304578 13x95mm

L= 130mm * D= 42mm

(6) Roll pin# 304578 13x95mm

L= 130mm * D= 42mm





D=230mm

complete Shield Kit 2600 Pro

116128 * L=1000mm

Outer Shield Bearing Outer Tube and Cone Inner Tube and Cone Inner Shield Bearing



2600 Splined Parts (SC35)

Splined Yoke Spined Shaft 52mm-25 Sleeve Tube Yoke

L= 130mm * D= 42mm

* D= 42mm

Shield Kit SC35


Outer Cone Outer Shield Bearing Outer Tube Inner Tube Inner Shield Bearing Inner Cone

 Bareco Universal Shield #AS30090

2600 Series Quick Disconnect Yokes

Part Number Diameter Splines Length (cuj-end) Collar or Pin Kit
 365816  1.375  21
 320802  1.375  21
 320801  1.375  6
 362419  1.375  6
 366780  1.750  20
 365818  1.750  6
 320803  1.750  6





2600 Series Clamp Yokes

Splined

Part Number Diameter Number of Splines Bore Length cuj-end
 320805  1.375  21        splined
 344299  1.375  6        splined
 194005  1.375  21        cc lock
 329053  1.750  20        splined
 329051  1.750  6        splined
 195124  1.750  6        cc lock
 195126  1.750  20        cc lock

Round

Part Number Diameter Key Bore Length Length cuj-end
 329060  1.750  .50  60  128  90  interferring



2600 Series Straight Bores

Round

Part Number Bore Key (cuj-e) Length Bore Length Notes
 329056  1.500  0.375  5.437  2.500
 329057  1.750  0.500  5.437  2.500
 380379  2.00  0.500  5.437"  2.500"    Pro

Splined

Part Number Diameter Splines (S) Length (Q) Bore (R) Seal ... Notes / Model





2600 Series H Yoke

Length Part Number
5.188"
320815

2600 Series Flange Yokes

Part Number Pilot Bolt Circle Length Angle Holes Notes
 320814  110 F  155.5mm  80    8 x 14.2
 335606  153  167  80    12MMX8  K90/4
 334661  98 M  138mm  115    12 x 12.2



P675 Constant Velocity

P675 Complete Assemblies

Part No A L B
158924
1.75-6
1210
1.75-6
600074
1.75-20
1210
1.75-20

Tube profile is S5 / S6



CV Head with 1.75-20 # 696753

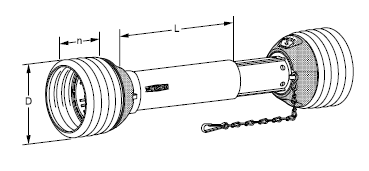

PWE675 Shielding

Part No Item# Description
113062
2
Outer shield (tractor side)
116437
3
Inner shield
129929
4
Bell cover
696695
5
Shield bearing for Bell
087276
6
SC25 shield bearing cv side
365305
8
screw
109132
9
PG30 shield bearing
120038
10
Shield cone (single joint) PG30
119851
20
Plastic center sleeve



2600 Overrunning Device

2600 Series Overrunning Device

Part Number Model Diameter Splines Length (cuj-end) Connection
 106127  F5/2R  1.750  20  8.75  CC
 106281  F5/2R  1.750  6  8.75  CC

Breakdown sheet



2600 Cutout Clutches "Automatic" or "Cam"

2600 Series Automatic Cam Clutch

Part Number Model Diameter Splines Length (cuj-end) Torque
 694175  K64/24L  1.750  20    3800nm
 135808  K64/24R  1.750  20    3800nm
 138041  K64/24R  1.750  20    4500nm
 135415W  K64/24R  1.750  6    3800nm
 136570  K64/24R  1.750  6    4500nm

Breakdown sheet



2600 Shear Bolt

2600 Series KB 61/30 Shear Bolt

Part

Number

Model Diameter Splines

C-to-bolt

radius

Bolt

Diameter

Length

(cuj-end)

Torque

Rating

 329238  KB61/3  1.375  6  75/10
 346424  KB61/30  1.75  20  64      4800 nm
 354298  KB61/30  1.75  6  75/10      3900nm

Breakdown sheet



K96/4 Friction

FK96/4 Friction and Overrunning



EK97/4 Friction

EFK97/4 Friction and Overrunning

More 2600 Series Clutches & Overrunning Devices --- Please call 800-824-0706
