Size 8 & (S9 SFT) Universal Joints
Nominal torque is a "working" torque figure. Factored into this is life expectancy, operating angle and greasing requirements. |
| Part Number | Cup Diameter (A) |
Length (B) |
Snap Ring |
Nominal Torque (ft lbs) |
Series | Type |
|---|---|---|---|---|---|---|
| 4120L0051 | 30.2 |
106 |
outside |
S8 EL CV |
||
| 41208R | 34.9 |
106 |
outside |
size 8 |
||
| 4120M0012 | 34.9 |
106 |
outside |
S9 SFT |
||
| 412080012 | 35 |
106.5 |
outside |
650 size 8 CV |

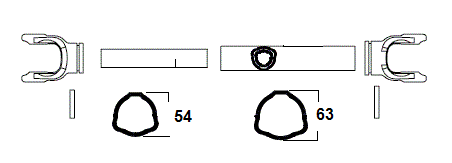

Size 8 Tri Tube Parts ( M )
| Outer Tube Yoke | Outer Tube B=63mm | Inner Tube B=54mm | Inner Tube Yoke |
|---|---|---|---|
|
 |
 |
|
204086860 |
125221500 |
125121500 |
204086861 |
 |
 |

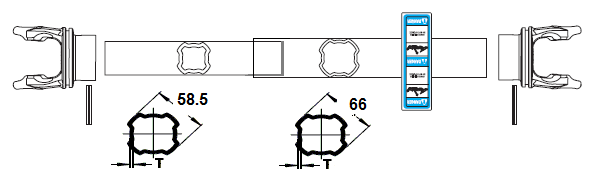

SFT S9 4-Lobe Parts ( M )
| Outer Tube Yoke | Outer Tube D=66mm | Inner Tube D=58.5mm | Inner Tube Yoke # |
|---|---|---|---|
|
|
|
|
204S96855 |
122111500 |
122381500 |
204S96856 |
 |
 |
Shield Kit # 5CS9121U2SS |

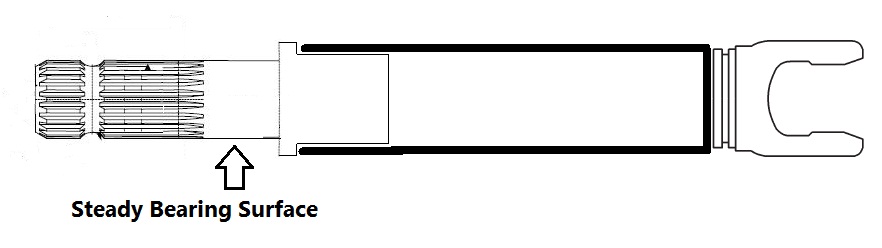

Size 8 Splined Assembly
| Outer Half Shaft | Splined Shafting | Splined Bar Yoke |
|---|---|---|
 |
 |
 |
569B81010 |
24921 .... |
204083460 |
Splined Assembly Part #8408086FXT07001
Size 8 (S9) Quick Disconnect Yokes
 |
|
Size 8 (S9) Taper Pin Clamp Yokes
 |
Size 8 ( S9 ) Round Bore Yokes
 |
| New EL CV | ||
 |
|
 |

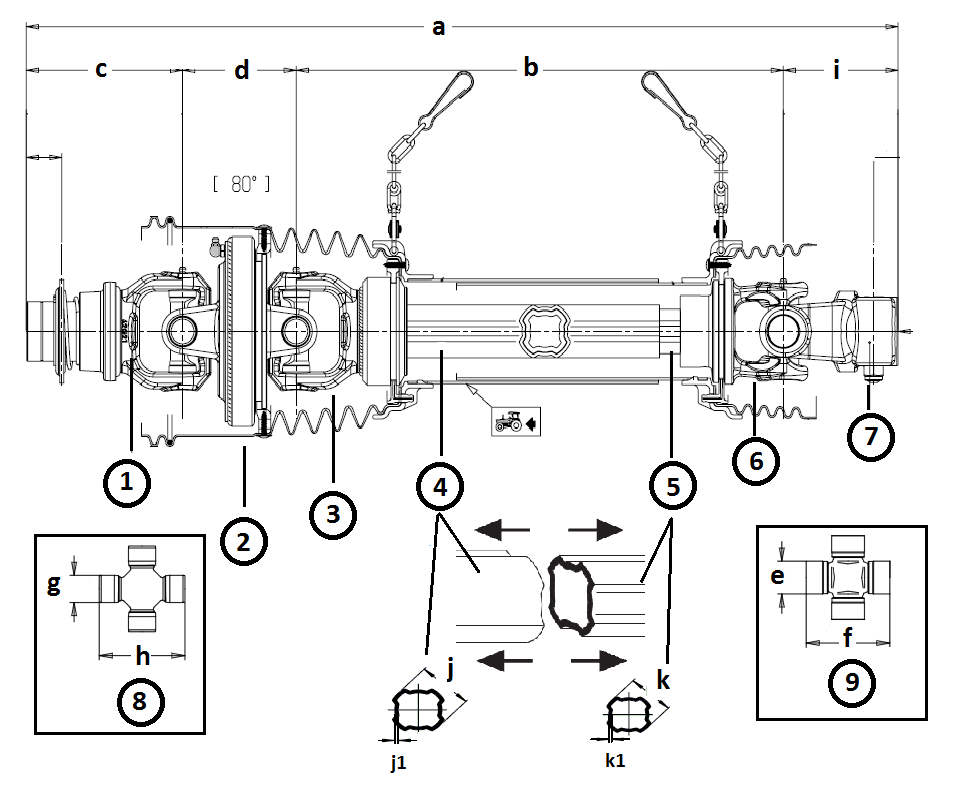

| EL CV assembly detail drawing | ||
| Part# 71R8121UCWR7R07 |
|
||||||||||||||||
(Size 8) S8 EL CV Parts
| CV Body | Outer CV Yoke | Outer 4-lobeTube | Inner 4-lobe Tube | Inner Yoke | Inner CV Yoke |
|---|---|---|---|---|---|
 |
 |
D1=58.2 |
D1=51.2 |
 |
 |
5110L0063 |
2150L6871 |
122251500 |
2454D1500 |
*204S86854 |
2150L6872 |
(Size 8) H8 EL CV Parts
| CV Body | Outer CV Yoke | Outer 4-lobeTube | Inner 4-lobe Tube | Inner Yoke | Inner CV Yoke |
|---|---|---|---|---|---|
|
|
D1=66.0 |
D1=59 |
|
|
5110L0063 |
2150L6867 |
122271500 |
2453V1500 |
*2040L6866 |
2150L6868 |
* Single UJ in rear of CV assembly is Size 7 for 4-lobe assemblies. (34.9mm x 93.5mm)
| EL CV Cone | EL CV Cone | Outer Shield Bearing | Inner Shield Bearing | SFT EL CV Shield Kit |
|---|---|---|---|---|
 |
 |
|
|
 |
2190L0121 |
2550L0023R02 |
2550G0001R02 |
2550G0002R02 |
5CS8121U2WS |
Size 8 Tri-tube CV Parts
| Outer tri-tube CV Yoke | Outer Tri-Tube | Inner Tri-Tube | |||
|---|---|---|---|---|---|
|
 |
=54mm |
=45mm |
*size 8* |
|
5110L0063 |
2150L6873 |
125171500 |
245161500 |
||
 |
|||||
* Single UJ in rear of CV assembly is Size 8 for tri-tube assemblies. (34.9mm x 106mm)
| EL CV Cone | EL CV Cone | Outer Shield Bearing | Inner Shield Bearing | SFT EL CV Shield Kit |
|---|---|---|---|---|
|
|
|
|
|
517080200 |
2550L0023R02 |
255080005R02 |
255080006R02 |
5F08121W1US |

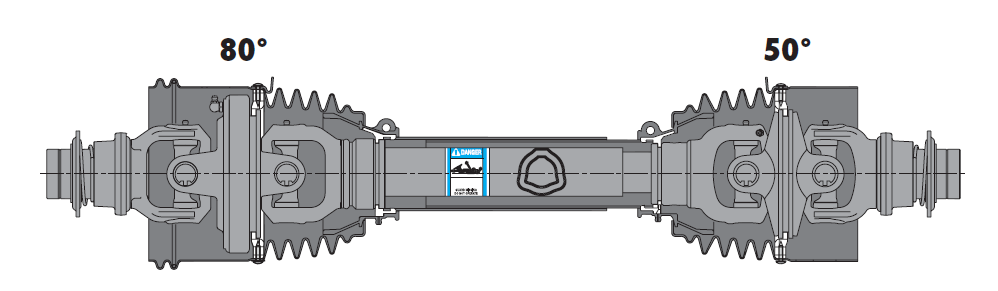

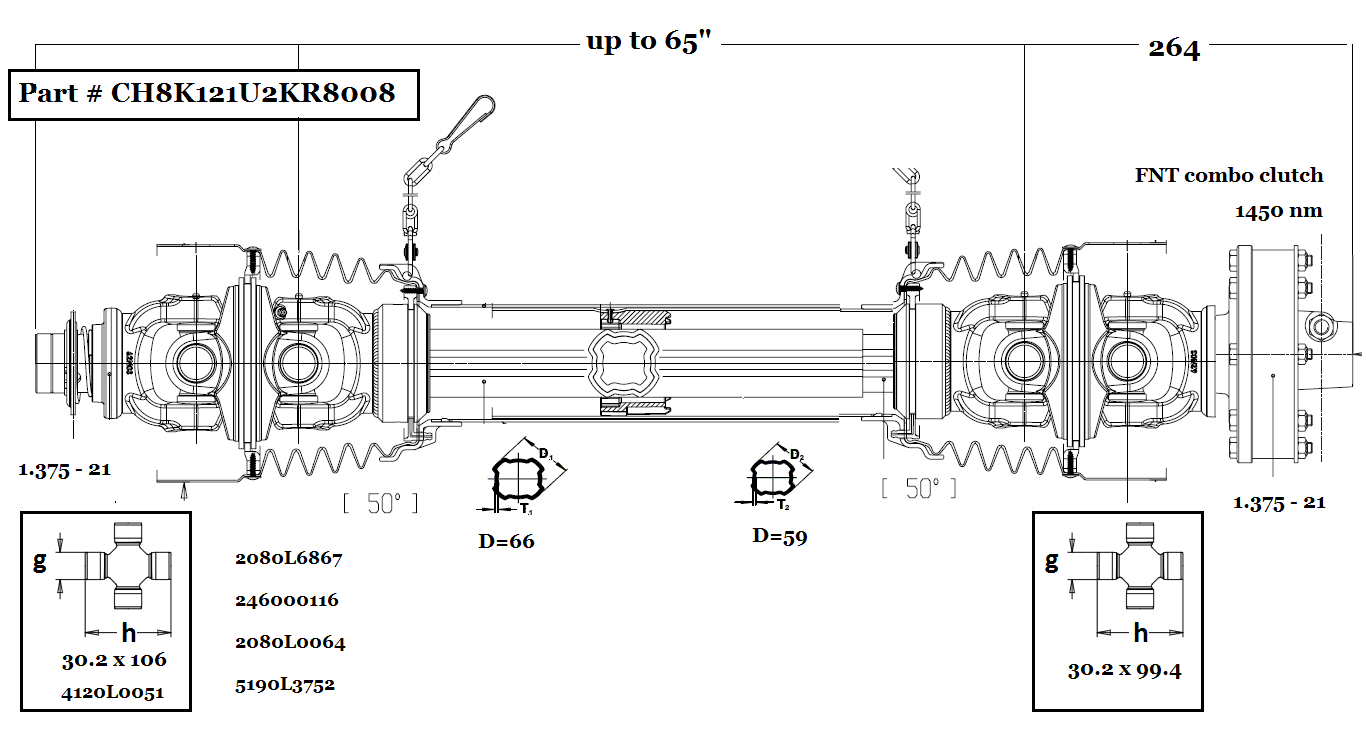

S8 (size 8) DOUBLE CV ASSEMBLY - 80 degree X 50 degree
S8 (size 8) DOUBLE CV ASSEMBLY - 80 degree X 42 degree

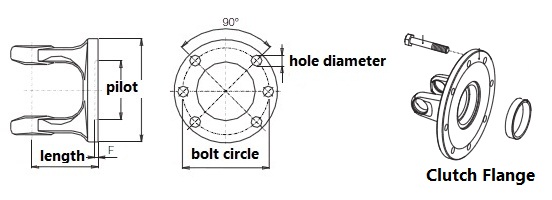

Not our 42 degree flange. This piece was made in our machine shop to incorporate an overrunning device into an 80 degree CV head. |
By utilizing our 42 degree CV flange on the rear of the PTO, we can machine almost any implement connection to fit. This means round bores, standard splines or even clutches. We believe this as well as the 50 degree CV is the real answer to applications requiring a double CV. Double CV PTOs using 2) 80 degree CVs have historically proven to fail prematurely. |
||||||||||||||||
 |
CAT5 50 DEGREE PARTS
|
Size 8 Clutches & Overrunning Devices
 |
Overrunning Device
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
Shear Bolt
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Friction Clutches
We inventory clutches by components in order to build a variety of combinations. See breakdown sheets. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|
