Many Industrial drivelines are of Europeam design, distinguishable by their circular flanges and metric flange dimensions, often called "DIN flanges" .

DIN Flange Patterns

* popular flanges only * other dimensions available

Elbe Series

(click for UJ specs)

Part Number
Angle

Pilot Diameter

Bolt Circle
Flange OD

Number of Holes
1.105.300.001

30 mm
47 mm
58 mm
4 x 5mm
1.105.301.001
1.106.300.001

35 mm
52 mm
65 mm
4 x 6mm
1.106.301.001
1.107.300.001


42 mm

62 mm
75 mm

6 x 6mm

1.106.308.001
1.107.300.013
1.109.300.201


47 mm*

74.5 mm
90 mm
4 x 6.4mm
4 x 8mm
4 x 8mm
1.109.301.201
1.110.300.001


57 mm

84 mm
100 mm

6 x 8mm

109
110
1.109.308.201
1.110.308.002


60.32mm Male

(SAE 1310)

69.85

4 (SAE 1310)
110
112
1.110.308.001
1.112.308.202


69.85 mm Male

(SAE 1410)


4 x .500" (SAE 1410)
148
1.110.301.001
1.112.300.201
1.112.305.203
1.113.300.001
1.113.305.001
1.148.305.005
20
20
35
30
35
30

75 mm*

101.5 mm
120 mm
8 x 8mm
8 x 8mm
8 x 10mm
8 x 10mm
8 x 10mm
8 x 10mm
1.112.301.201
1.113.301.001
1.148.300.001
1.158.300.001
1.117.300.203


90 mm*

130 mm
150 mm
8 x 10mm
8 x 10mm
8 x 12mm
8 x 12mm
8 x 12mm
1.117.301.201


95 mm

140 mm
165 mm
8 x 16mm
..
113
..
1.113.308.001
..


95.25mm Male

(SAE 1550)

120.65mm
140 mm

4 x .625

(SAE 1550)

117
148
1.117.308.205
1.148.308.001


168.275mm Male

(SAE 1610)

155.575mm
177.79mm

8 x .375"

(SAE 1610)

1.117.301.205
1.148.301.001
1.158.301.001
1.120.300.001
1.122.300.001


110 mm

155.5 mm
180 mm
8 x16mm
8 x 12mm
8 x 14mm
10 x 16mm
10 x 16mm
158
..
1.158.308.001
..


196.85mm Male

(SAE 1710)

184.145mm
203.2mm

8 x .375"

(SAE 1710)

117
120
1.117.308.201
1.120.308.001


196.85mm Male

(SAE 1810)

184.145mm
203.2mm

12 x .438"

(SAE 1810)

1.120.301.001
1.122.301.001

140 mm
196 mm
225 mm
8 x 16mm
8 x 16mm
122
..
1.122.308.0013
..


177.8 mm Male

(SAE 1880)

209.55mm
247.5mm

8 x .625"

(SAE 1880)

1..
1.122.301.005
..

250 mm
8 x 18mm
8 x 18mm





Standard Component Ends
Fixed Joint

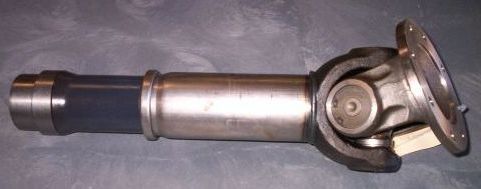

Slip Joint
Series Flange OD
Bolts
 Angle Fixed Slip Hub Hub bore
105
58 mm
4x5mm
30
0.105.050.001
0.105.070.001
1.105.240
20mm
106
65 mm
4x6mm
30
0.106.050.001
0.106.070.001
1.106.240
25mm
107
75 mm
6x6mm
30
0.107.050.001
0.107.070.001
1.107.240
30mm
109
90 mm
4x8mm
20
0.109.050.201
0.109.070.201
1.109.240
35mm
110
100 mm
6x8mm
20
0.110.050.001
0.110.070.001
1.110.240
40mm
112
120 mm
8x8mm
20
0.112.050.201
0.112.070.201
1.112.240
45mm
113
120 mm
8x10mm
20
0.113.050.001
0.113.070.001
1.113.240
55mm
113
120 mm
8x10mm
35
0.113.055.001
0.113.075.001
1.113.240
55mm
113
150 mm
8x10mm
18
0.113.051.001
0.113.071.001
1.148.240
60mm
148
150 mm
8x12mm
20
0.148.050.001
0.148.070.001
1.148.240
60mm
158
150 mm
8x12mm
20
0.158.050.001
0.158.070.001
1.158.240
65mm
117
150 mm
12x12mm
30
0.117.050.001
0.117.070.001
1.158.240
65mm
117
165mm
8x16mm
30
0.117.051.001
0.117.071.001
--
--
117
180 mm
8x14mm
30
0.117.051.007
0.117.071.007
1.117.240
80mm
120
180 mm
10x16mm
30
0.120.050.001
0.120.070.001
1.117.240
80mm
122
180 mm
10x16mm
30
0.122.050.001
0.120.070.001
1.117.240
80mm
120
225 mm
8x16mm
30
0.120.051.001
0.120.071.001
1.120.240
110mm
122
250 mm
8x18mm
25
0.122.051.005
0.122.071.005
1.122.240
110mm

many other flange and UJ combinations are available .. please call
