55N Series Driveline Parts  35N   44R    2500    Size 8

55N Series Universal Joints


(A) 1.533" x (B) 4.30"



 Part No  Vendor  Detail
3-0045  Neapco
200-5500 Weasler
return to menu

55N Square Parts

2
3
4
5
6

Tube Yoke #

2.50" x .134"

Tube

Square Sleeve 1.312"

Solid Shaft

1.312"

Bar Yoke #

704-5500
500-4400
300-5500
Shield #69-2648
Shield Bearing #56-0844






return to menu

55N Splined Parts


2
3
4
5

Spline

Dimensions

Splined Bar Yoke #

Splined shaft

Spline Sleeve

Tube Yoke #

1.812"-20
302-5500
404-2720
503-3500
704-5500(2.5x.134)
Shield #69-2648
Shield Bearing #56-0844




return to menu

55N Series Quick Disconnect Yokes
Part Number Diameter Splines Length (cuj-end) Collar or Pin Kit
 101-5521  1.375"  21
 101-5506  1.375"  6
 101-5520  1.750  20
 102-5528  1.750  6





return to menu

55N Series Clamp Yokes



Splined

Part Number Diameter Number of Splines Bore Length cuj-end
 807-5506  1.375  6    5.50"
 807-5521  1.375"  21    5.50"
 807-5520  1.750"  20    5.50"
 807-5527  1.750"  27    5.5
 55051-1093  1.750"  6

Round

Part Number Diameter Key Bore Length Length cuj-end
 55051-1783  1.750"  .375"





return to menu

55N Series Straight Bores



Round

Part Number Bore Key (D) Length Angle Notes
 Y517  1.375"  .312"  4.625"      Rears
 800-5522  1.375"  .375"
 800-5524  1.500"  .375"
 800-5526  1.625"  .375"
 800-5528  1.750"  .375"
 800-5532  2.00"  .500"

Splined

Part Number Diameter Splines (S) Length (Q) Bore (R) Seal ... Notes / Model
 Y512  1.375  21  4.500"      .312" pin hole
 Y514  1.500"  17  4.00"      .312" pin hole
 55011-1004  1.675"  16  4.500"
 55041-1403  1.750  10
 55041-1392  1.750"  27
 55041-1398  1.750"  20





return to menu

55N Series H Yoke

Part Number Length Angle
return to menu

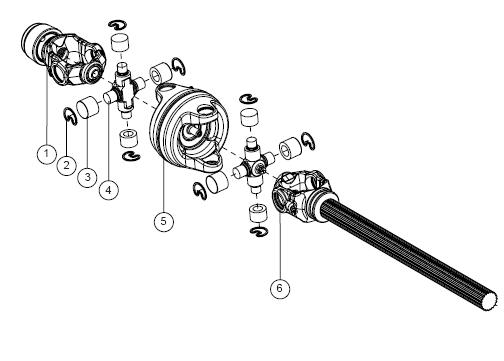

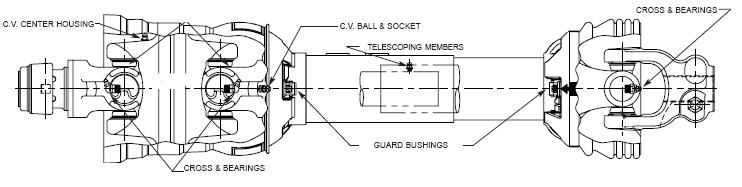

55N Constant Velocity

Assemblies



Spline

Dimensions

 Assembly #

CV Half Shaft

with Shield

CV Half Shaft

without Shield

CV Shield
1.375-6
14505548
19505506
15505506
912-5548
1.375-21
14605548
19605521
15605521
912-5548
1.750-20
14705548
19705520
15705520
912-5548
* Longer assembly is achieved by lengthening the non-CV half.











return to menu

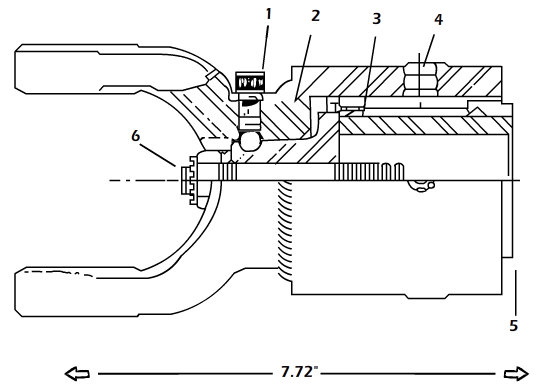

55N Series Shear Bolt Yokes

Part Number Diameter Splines Center-to-bolt Length (cuj-end) Torque Rating
 104-5506  1.375  6
 104-5521  1.375  21
 104-5520  1.750  20
