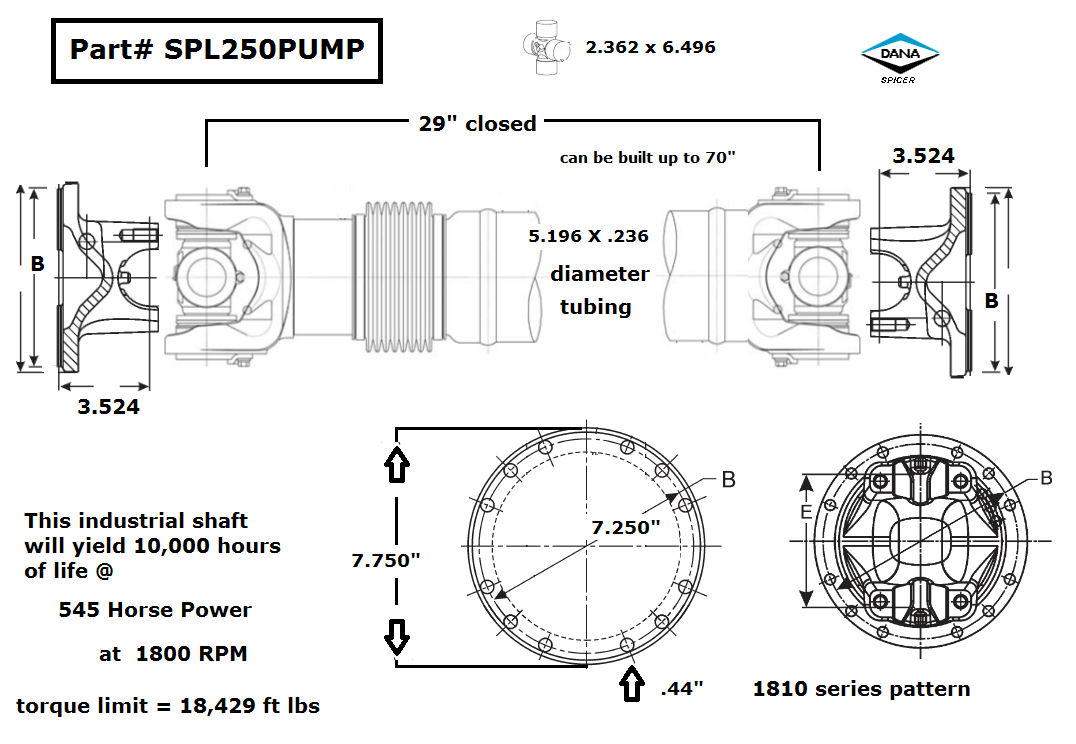

SPL250 Series Driveline Parts
SPL170    1810   RPL25         Print

SPL250 Universal Joints * (A) 2.362 x (B) 6.496



universal joint
 Part No  Vendor  Detail
 6-1250  Neapco hardware kit # 1-0070
SPL250X  Dana  straps & spring tabs


SPL250 Tube Yokes

Part Number Tube Size (H) Length Angle
 250-28-17  5.197x.236  4.094



SPL250 Flange Yokes

Part Number Pilot Bolt Circle Length Angle Holes Notes


SPL250 Splined Sleeve

Part Number Diameter Splines (J) Length (F) Tube Size Boot Mates With
 250-55-31X  3.858  38  6.909  5.197x.236  211959X  250-82-21*170-82-21X


SPL250 Yokeshafts

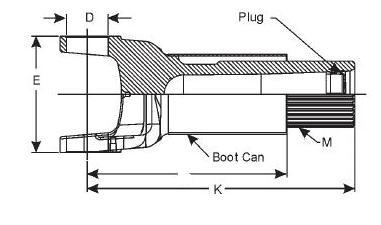

Part Number Diameter Splines (K) Length (L) Length of Spline (R) Length of Shaft Angle Notes
 250-82-21X  3.858  38  11.811
Yokeshaft Calculations


SPL250 End Yokes

Stap Kit#250-70-18X

Part Number Diameter Splines (S) Length (Q) Bore (R) Seal ... Notes / Model



Midship End Yokes

Part Number Diameter Splines (Q) Bore (S) Length Mates with Mates with
 250-4-21-1  2.350  46      250-53-11


Inboard Midship Assemblies



Diameter Splines Tubing Stub Center Bearing Fixed Yoke
 2.350  46  5.197x.236  250-53-11  5003323  250-4-21-1



Dana Spicer SPL250 Parts
 SPL250 MIDSHIP KIT SPL250-11-21 Drive Line Service of Fresno Inc  800-824-0706









































U-Joint
Tube Yoke
Tubing
Stub
Center Bearing
End Yoke
Washer
Nut
Straps
SPL250X
250-28-17
5.197x.236
250-53-11
5003323
250-4-21-1
230123-6
231502
250-70-18X



Midship Kit Assembly # SPL250-11-21

includes : stub, bearing, end yoke, washer, nut & straps



























Splines=2.350 x 46
